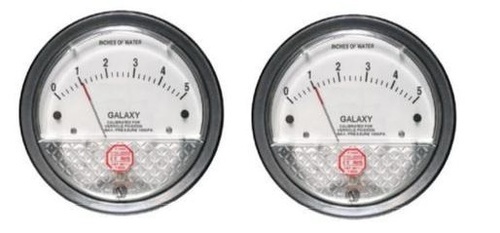

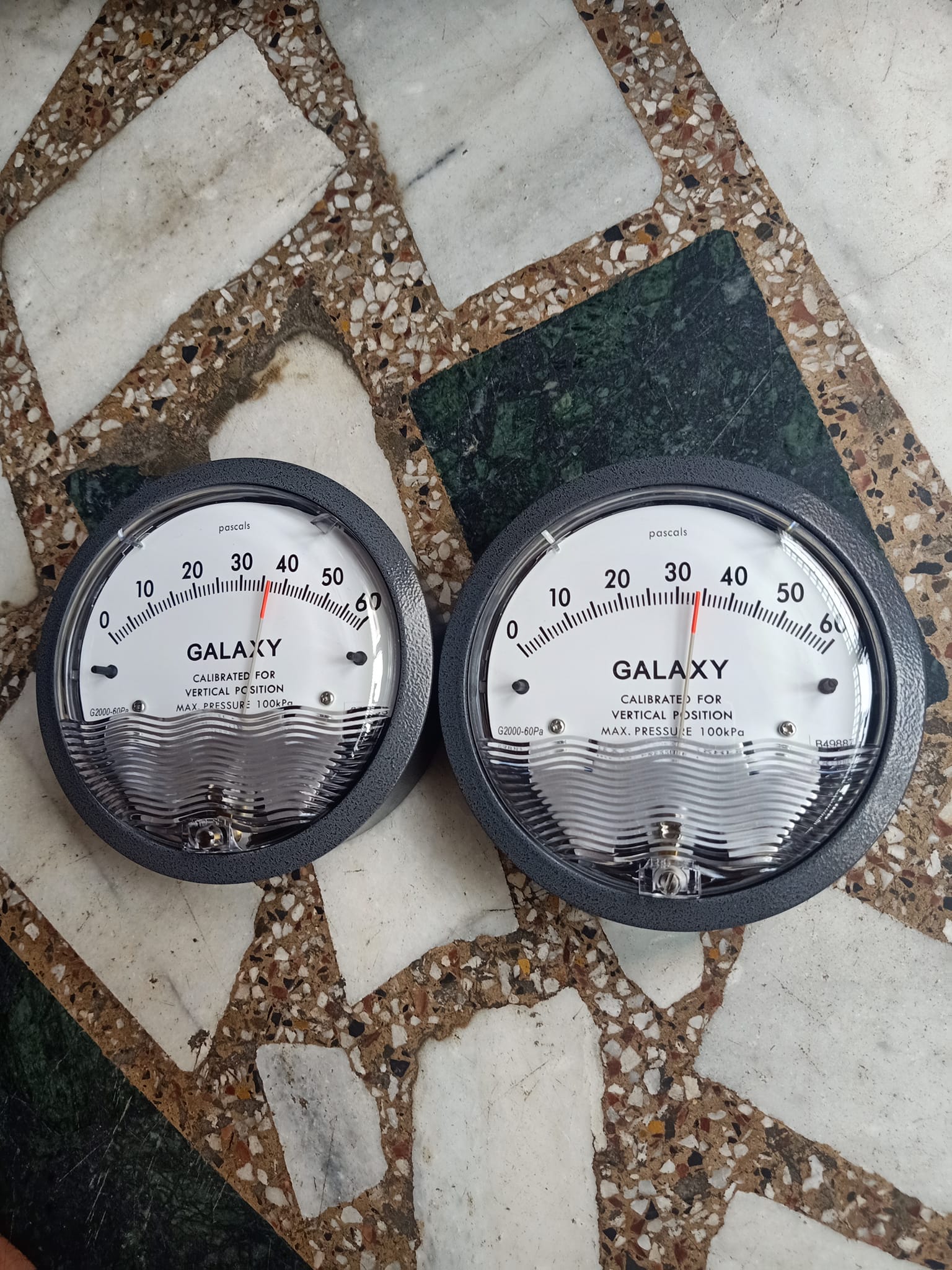

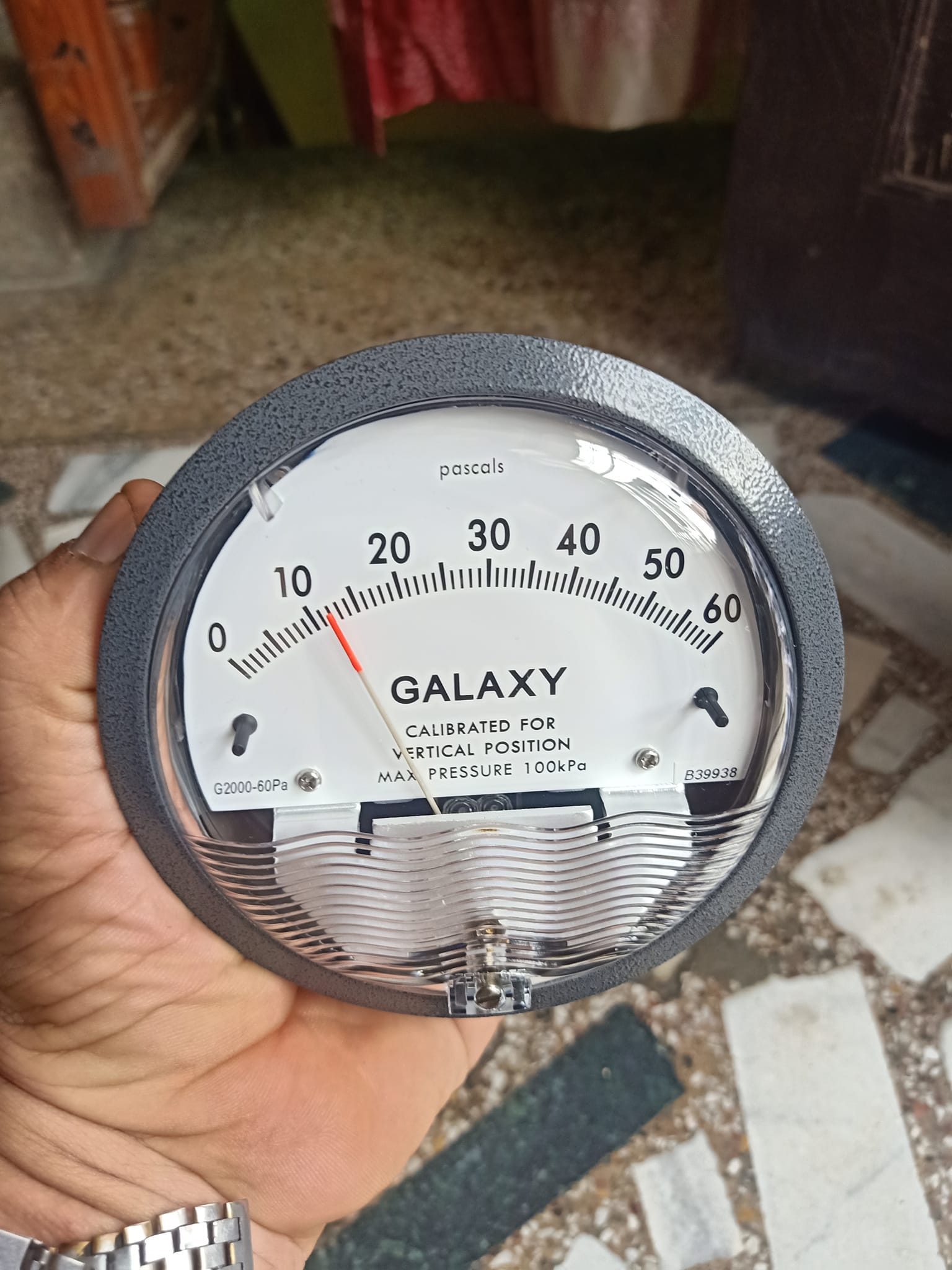

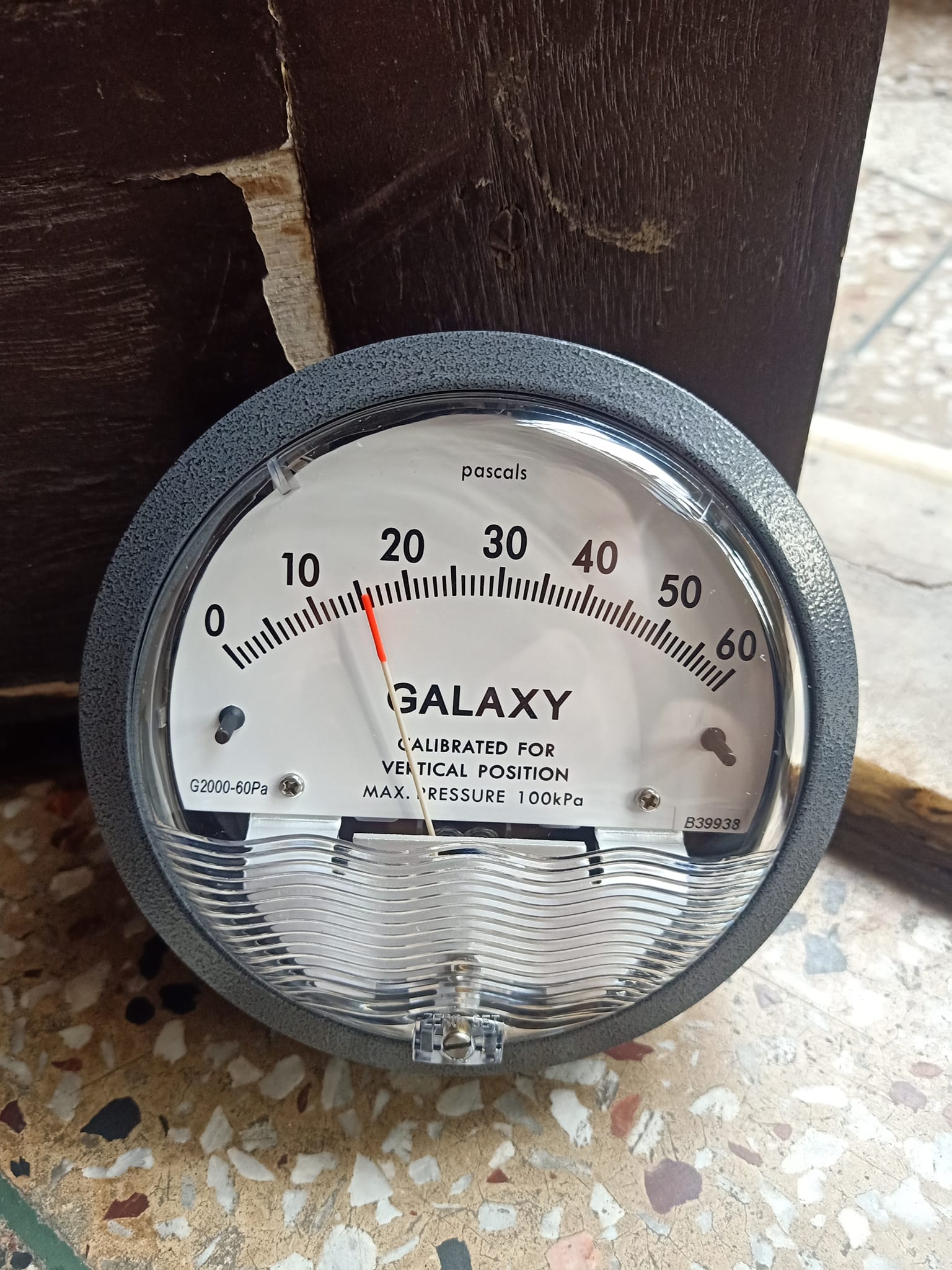

The Series G2000 Differential Pressure Gauges Are Low-Cost, Diaphragm Operated,Mechanical Pressure Gauges,Series G2000 Are For Measuring Fan And Blower Pressures,Filter Resistance,Furnace Draft,Pressure Drop Across Orifice Plates,Monitoring Blood And Respiratory Pressures In Medical Care Equipment With Simple, Frictionless Movement Parts,It Can Quickly Indicate Low Air Or Non-Corrosive Gas Pressures,Either Positive,Negative Or Differential It Can Resist Shock,Vibration And Over-Pressures.


Techinical Specifaction:

• Pressure Limits: –20″ Fig to 15 PSI (-0.677 bar to 1.034 bar)
• Media Compatibility: Air And Compatible Gasses
• Accuracy: +1- 2% Full Scale (+/- 3% an -0 and +/-4% on -00) Throughout Range at 70°F (21 °C)
• Temperature Ranges: 20° to 140°F (-7° to 60°C)
• Housing Material: Die Cast Aluminum Case And Bezel (ABS For P2000), With Acrylic Cover
• Process Connection: 1/8″ Female NPT Duplicate High And Low Pressure Taps – One Pair Side And One Pair Back.
• Weight: 1 lb 2 oz (510 g)
• Accessories: Two 1/8′ NPT Barbed Frftings,Two 1/8″ NPT Plugs, And Three Mounting Tabs And Screws
• Warranty: 1 Years Approvals: Roi-IS, CE
