Product Details:

High Temperature HEPA Filter 350 Degrees Temperature

Application: Some Oven,and High Temperature Ventilation System in Pharmaceutical,Hospital,Chemical Industries,Medical infusion Production line,Industrial Production Sterilization,Drying and Other environments and Some Heat Resistant Cleanroom Equipment;

There are Two Different Type of High Temperature HEPA Filters

1. 250°C High Temperature Heat Resistant HEPA Filter
2. 400°C High Temperature Heat Resistant HEPA Filter

Frame: Aluminum Alloy/Galvanized Steel Stainless Steel 201/304/316/316L

For Temperature Below 250°C, Any Material Are Available;

For Temperature Upon 400°C, Stainless Steel is Recommend;

Filter Material: Fine Glass Fiber

Separator: Aluminum Foil Corrugated

Sealant: High Temperature Resistant Or Ceramic Glue

For Temperature From 250°C to 400°C, Ceramic Glue Necessary

Gasket: High Temperature Silicon Rubber Bar/Glass Fiber Bar

For Temperature Below 250°C, Silicon Rubber Bar;

For Temperature From 250°C to 400°C, Glass Fiber Bar

Continuous Working Temp: ≤250°C or ≤400°C Two Different Choice

Frame Construction Design

Double Turn Flange

Single Turn Flange

Boxed

Normal Thickness 150 MM or 300 MM,

Normal Size: 610*610*300 / 150 MM ( 24*24*12 / 6 inch )

305*610*300 / 150 MM ( 12*24*12 / 6 inch )

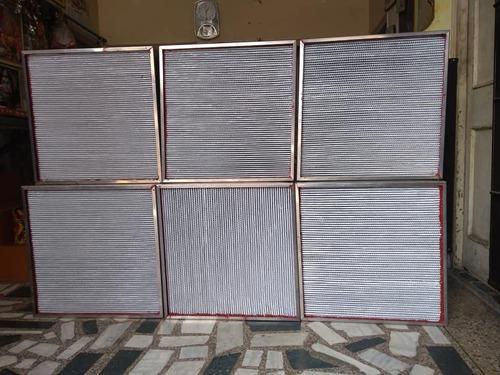

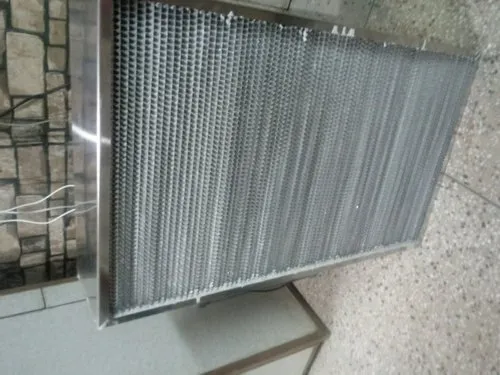

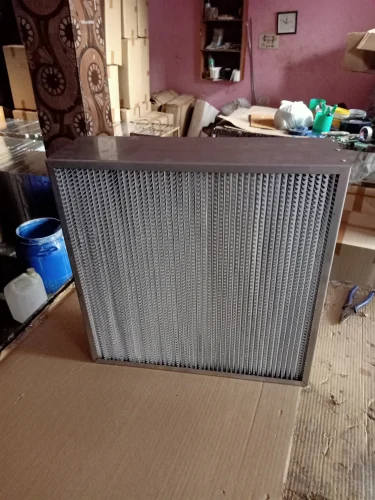

Here Is The Pictures Of 350-400°C High Temperature HEPA Filters

Yes ! I am Interested

Product Details:

High Temperature HEPA Filter In Chennai Tamil Nadu

Application:


• Some Oven,and High Temperature Ventilation System in Pharmaceutical,Hospital,Chemical Industries,Medical infusion Production line,Industrial Production Sterilization,Drying and Other environments and Some Heat Resistant Cleanroom Equipment;

There are Two Different Type of High Temperature HEPA Filters

1. 250°C High Temperature Heat Resistant HEPA Filter
2. 400°C High Temperature Heat Resistant HEPA Filter

• Frame: Aluminum Alloy/Galvanized Steel Stainless Steel 201/304/316/316L
• For Temperature Below 250°C, Any Material Are Available;
• For Temperature Upon 400°C, Stainless Steel is Recommend;
• Filter Material: Fine Glass Fiber
• Separator: Aluminum Foil Corrugated
• Sealant: High Temperature Resistant Or Ceramic Glue
• For Temperature From 250°C to 400°C, Ceramic Glue Necessary
• Gasket: High Temperature Silicon Rubber Bar/Glass Fiber Bar
• For Temperature Below 250°C, Silicon Rubber Bar;
• For Temperature From 250°C to 400°C, Glass Fiber Bar
• Continuous Working Temp: ≤250°C or ≤400°C Two Different Choice
• Frame Construction Design
• Double Turn Flange
• Single Turn Flange
• Boxed
• Normal Thickness 150 MM or 300 MM,
• Normal Size: 610*610*300 / 150 MM ( 24*24*12 / 6 inch )
• 305*610*300 / 150 MM ( 12*24*12 / 6 inch )

Here Is The Pictures Of 350-400°C High Temperature HEPA Filters

Additional Information:

Yes ! I am Interested

Product Details:

High Temperature HEPA Filter In Bhilwara Rajasthan

Application:


• Some Oven,and High Temperature Ventilation System in Pharmaceutical,Hospital,Chemical Industries,Medical infusion Production line,Industrial Production Sterilization,Drying and Other environments and Some Heat Resistant Cleanroom Equipment;

There are Two Different Type of High Temperature HEPA Filters

1. 250°C High Temperature Heat Resistant HEPA Filter
2. 400°C High Temperature Heat Resistant HEPA Filter

• Frame: Aluminum Alloy/Galvanized Steel Stainless Steel 201/304/316/316L
• For Temperature Below 250°C, Any Material Are Available;
• For Temperature Upon 400°C, Stainless Steel is Recommend;
• Filter Material: Fine Glass Fiber
• Separator: Aluminum Foil Corrugated
• Sealant: High Temperature Resistant Or Ceramic Glue
• For Temperature From 250°C to 400°C, Ceramic Glue Necessary
• Gasket: High Temperature Silicon Rubber Bar/Glass Fiber Bar
• For Temperature Below 250°C, Silicon Rubber Bar;
• For Temperature From 250°C to 400°C, Glass Fiber Bar
• Continuous Working Temp: ≤250°C or ≤400°C Two Different Choice
• Frame Construction Design
• Double Turn Flange
• Single Turn Flange
• Boxed
• Normal Thickness 150 MM or 300 MM,
• Normal Size: 610*610*300 / 150 MM ( 24*24*12 / 6 inch )
• 305*610*300 / 150 MM ( 12*24*12 / 6 inch )

Here Is The Pictures Of 350-400°C High Temperature HEPA Filters

Yes ! I am Interested

Product Details:

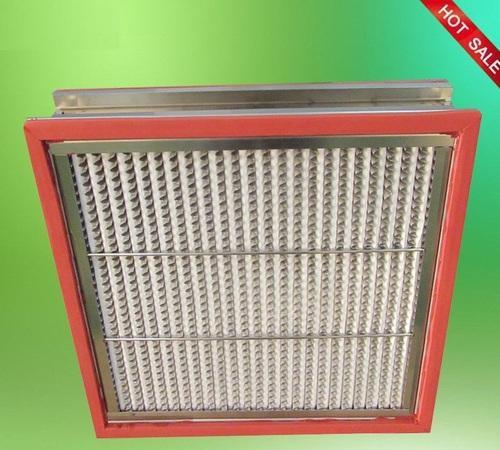

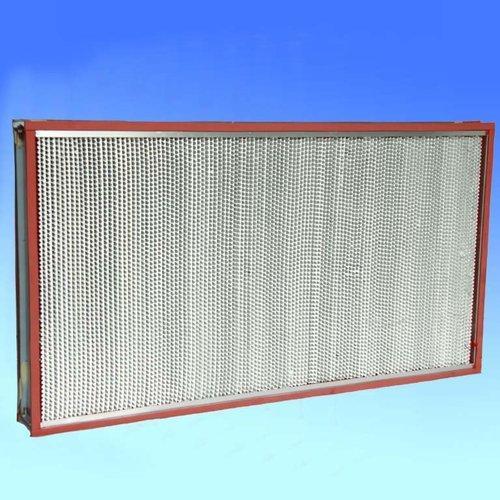

We are highly acknowledged organization engaged in presenting remarkable range of High Heat Resistance HEPA Filter.

Yes ! I am Interested

Product Details:


Specifications:

High temperature high efficiency filter designed using a separator, corrugated separator can be accurately maintained pleat spacing, at least resistance, maximize the use of the filter, the filter medium pleated sides 180 turn pleated folds, media prescribe indentation bending to open at the end of the separator cartridge pleats into a wedge, wedge filter cartridge pleats to prevent breakage.

Applications :

1. High temperature filter can be used in baking machinery in electronics industry, clean room and high temperature process lines, such as painting room for automobiles.

2. High temperature frame is mostly made of SUS material, Galvanized steel and aluminum board.

3. High temperature filters are durable under high condition to provide a clearified and satisfied environment.

Structure:

High-temperature glass fiber filter paper.
Stainless steel frame.
Sealant: high temperature silicone.
Gasket: glass fiber, silicone rubber
By laser counting efficiency: 99.95%, 99.99% @ 0.3μm, 99.97% @ 0.3μm efficiency class: H13 (EN1822).
Continuous operation maximum temperature: 350 ???

Material and Performance

Yes ! I am Interested

Product Details:

Application: Some Oven,and High Temperature Ventilation System in Pharmaceutical,Hospital,Chemical Industries,Medical infusion Production line,Industrial Production Sterilization,Drying and Other environments and Some Heat Resistant Cleanroom Equipment;

Yes ! I am Interested

Product Details:

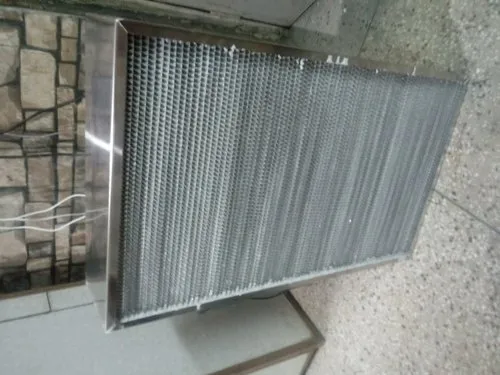

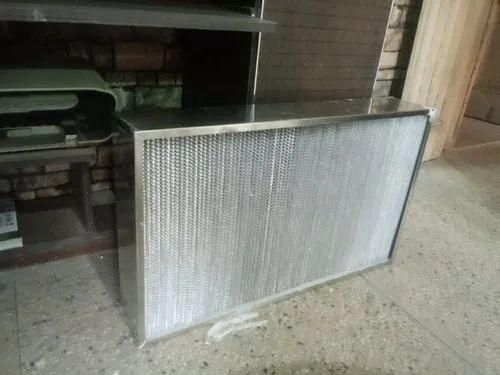

High Temperature HEPA Filter 400 oC

High Temperature HEPA Filter 400 Degrees Temperature
Application: Some Oven,and High Temperature Ventilation System in Pharmaceutical,Hospital,Chemical Industries,Medical infusion Production line,Industrial Production Sterilization,Drying and Other environments and Some Heat Resistant Cleanroom Equipment;
There are Two Different Type of High Temperature HEPA Filters
250°C High Temperature Heat Resistant HEPA Filter
400°C High Temperature Heat Resistant HEPA Filter

Frame: Aluminum Alloy/Galvanized Steel Stainless Steel 201/304/316/316L
For Temperature Below 250°C, Any Material Are Available;
For Temperature Upon 400°C, Stainless Steel is Recommend;
Filter Material: Fine Glass Fiber
Separator: Aluminum Foil Corrugated
Sealant: High Temperature Resistant Or Ceramic Glue
For Temperature From 250°C to 400°C, Ceramic Glue Necessary
Gasket: High Temperature Silicon Rubber Bar/Glass Fiber Bar
For Temperature Below 250°C, Silicon Rubber Bar;
For Temperature From 250°C to 400°C, Glass Fiber Bar

Continuous Working Temp: ≤250°C or ≤400°C Two Different Choice
Frame Construction Design
Double Turn Flange
Single Turn Flange
Boxed

Normal Thickness 150 MM or 300 MM,
Normal Size: 610*610*300 / 150 MM ( 24*24*12 / 6 inch )
305*610*300 / 150 MM ( 12*24*12 / 6 inch )


Here Is The Pictures Of 350-400°C High Temperature HEPA Filters

Yes ! I am Interested

Product Details:

Applications:

• Fine Particulate Filtration In
• Hospitals (Operation Theater)
• Clean Room Applications
• Clean Room Equipments

Yes ! I am Interested

Product Details:

Applications:

• Fine Particulate Filtration In
• Hospitals (Operation Theater)
• Clean Room Applications
• Clean Room Equipments

Yes ! I am Interested

Product Details:

Enviro Tech Industrial Products have High Temperature HEPA Filter are designed for the air intake and extract systems of critical applications where high efficiency filtration is necessary. High Temperature HEPA Filter are capable of retaining particulate matter down to 0.01 microns. High Temperature HEPA Filter are available with efficiencies between 95% and 99.999%.

Features:

• Low initial pressure drop.
• High dust holding capacity.
• High cost / performance ratio.
• Wide range of standard sizes.
• Individually leak tested.

Type :

• Deep pleated Flange or Box Type

Filter Media :

• Micro fiber glass paper (Imported)
• Sealant Polyurethane based
• Gasket Neoprene rubber gasket

Applications:

• Fine particulate filtration in
• Hospitals (Operation Theater)
• Clean room applications
• Clean room equipments

Yes ! I am Interested

Product Details:

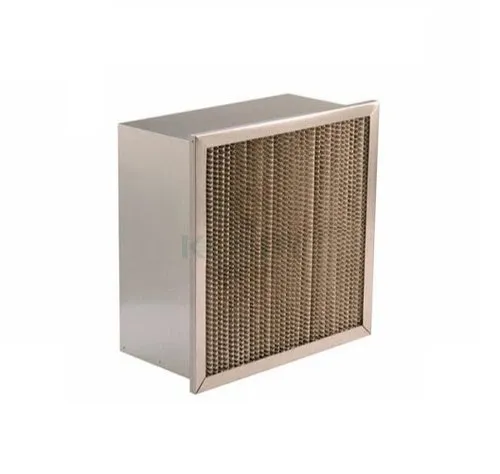

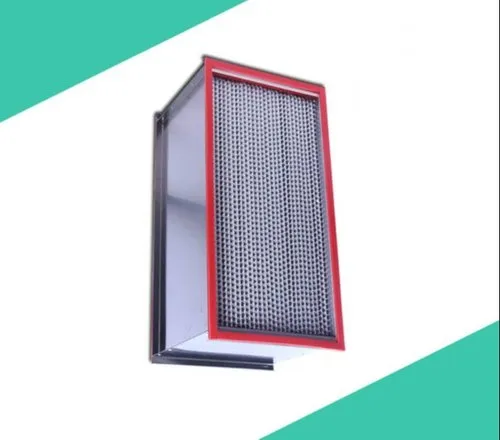

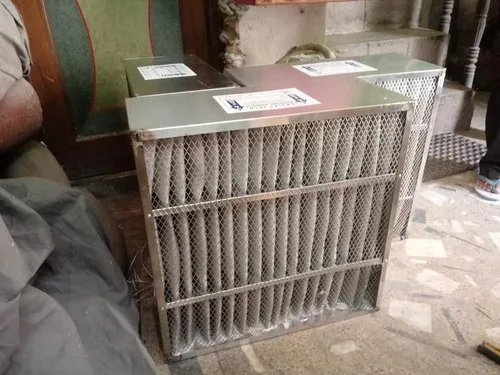

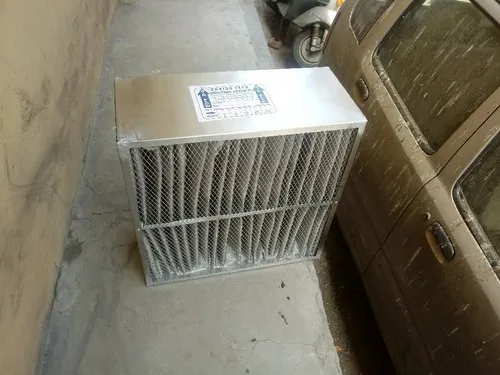

Micro Glass Fiber High Temperature Air Filter With Double Header Sus Frame

General Description:

The Hi Tempex High Temperature Series HT Grade Air Filters Are Designed For High Efficiency Commercial and industrial applications. The Filters are available in MERV 11  and MERV 14 performances. HT Filters are produced in a wide Range of Sizes, in single or Double Header Combinations.

The HT Filter Frame Shall be Made of Heavy Duty Galvanized Steel. The media shall be constructed of water resistant, inorganic glass microfiber. For quality assrance, the glass microfiber media rolls are randomly tested and certified to meet minimum efficiency requirements by the media manufacturer. The media pack shall consist of a continuous sheet of pleated glass microfiber. The pleated media pack is sepated with multiple rolled-edge corrugated aluminum separators. Aluminized faceguards and support struts are installed on teh air entering and air leaving sides of the frame to ensure filter integrity and increased rigidity.

Operating Temperatures Range From 100 to 400 degrees Celcius. A 1/8" thick High Temperature Rope Gasket Shall be Applied to the Filter.

Technical Data:

• Media: High Heat Resistant Glass Fiber Paper
• Frame:GI; Stainless Steel
• Efficiency Range From H13,H14 (EN 1822)
• Separator: Aluminium Foil
• Efficiency: 99.99@0.3um
• Initial resistance: 160 Pa
• Sealant: Thermoresistant sealant
• Recommended final pressure drop : 500Pa
• Humidity resistance: 100%
• Max Temperature: 250??? or 350???
• DIN 53438 Flammability: F1
• UL 900 Standard :  Class 2
• Max.air flow rate:  125% of rated air flow
• Media color available: White
• Gasket:Red high heat resistant gasket.
• Stamp Label is available upon request.

• Silicon free sealant is available for food processing industry.

•

Applications:

The High Temperature Filter is a High Efficiency Particulate Air filter especially designed to remove airborne contaminants in critical areas, in which high efficiency on fine particulate matter is required and where hot air is used during the production process.
These filters are used in a broad range of industries, from the production of pharmaceutics, photos and films , to food processing.


Specifications:

Other Sizes is Available!
