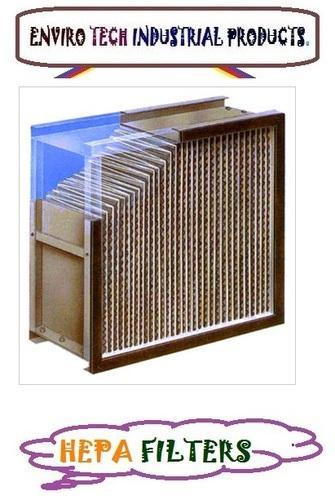

HEPA Filter

We put forward a broad range of HEPA Filter It is ideally suitable for protection against harmful particles emitted from radioactive substances. Our offered filter is manufactured in adherence with the set industry standards using advanced technology and optimum quality raw material. In tune with international quality standard, we provide the entire range in various sizes and specifications as per the requirement of our clients. Our quality controllers perform a series of test on various parameters, in order to ensure the quality of this filter. Apart from this, clients can avail the entire range from us at industry leading rates.

Features:

Easy to clean
High efficiency
Compact size

Technical Specifications :

Flange Type & Box Type
Sizes Available: 610 mm x 610 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm

Customized Sizes Are Available On Request
Filtration Rating: 0. 3 Micron & More
Frame Material: SS 304 / GI (Galvanized Steel) / Aluminum.
Filtration Efficiency: 90- 99. 9 %
Filter Media: Glass Fiber Media / Spun Bonded Polyester Media.
H14 - 99.999% @ 0.3 micron

These filters are designed to give an efficiency of more than 99.97 % down to 0.3 microns with an initial pressure drop of less than 25 mmwg. Standard sizes available are.

No.	Sizes in Inches	Flow (cfm)
1.	12 x 12 x 6	90
2.	24 x 18 x 12	750
3.	24 x 36 x 6	750
4.	24 x 24 x 6	500
5.	24 x 24 x 12	1000
6.	24 x 48 x 6	1000

With Aluminium / SS frames these filters can be supplied in Box Type or Flange type designs. Also these filters are made to confirm and meet the specifications of international standards

Other Information

Pay Mode Terms: T/T (Bank Transfer)

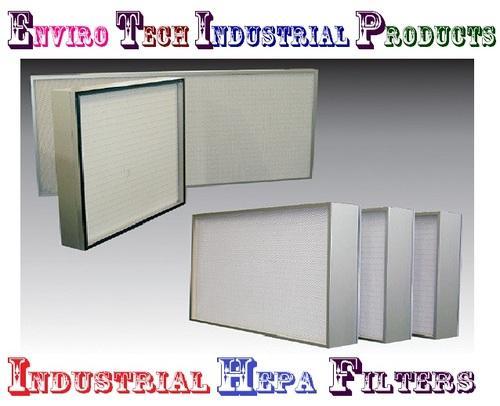

Industrial HEPA Filters

We manufacture and supply a wide range of Industrial HEPA Filterswhich has high filtration efficiency. These are manufactured by hemmed edges of aluminum separators in order to provide rigidity & uniform air flow. We do quality analysis and testing of theseIndustrial HEPA Filters before we handover this to our valuable clients. We have specialized team of experts who do quality checking under certain parameters that meets international standards.

Salient features are as follows:

Aluminum, S.S and G.I is used to make the body of HEPA filter
Used in biomedical purpose, vacuum cleaners, nuclear industry, aerospace, nuclear power, pharmaceutical processing, health care, hospitals, nuclear fuels, and electronic micro circuitry (computer chips).

Other Information

Pay Mode Terms: T/T (Bank Transfer)

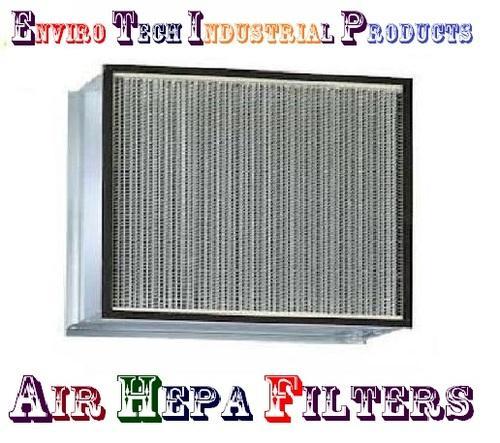

Air HEPA Filters

Depending upon the needs and demands of the consumers we offer a high range of Air HEPA Filters products to our honoured clients. We offer these filters which are used for filtration of dust and moisture accurately. These are available at clients required sizes and affordable prices. Our filters are widely used in

Food,
Pharmaceutical,
Paint shop,
Hospitals,
Chemical,
Gas turbine,
Aerospace etc.

Our business is highly involved in offering a wide range of reliableAIR HEPA Filter to our valuable clients. These are available in different sizes based on the requirements of the clients. Our range is tested by our experts on various parameters to offer an unmatched range to our clients. Clients can avail these at reasonable prices in the industry.

Sizes:

All sizes available in GI/MS Cassette/Flanged construction
Available in flow capacity range up to 2000 CFM

Other Information

Pay Mode Terms: T/T (Bank Transfer)

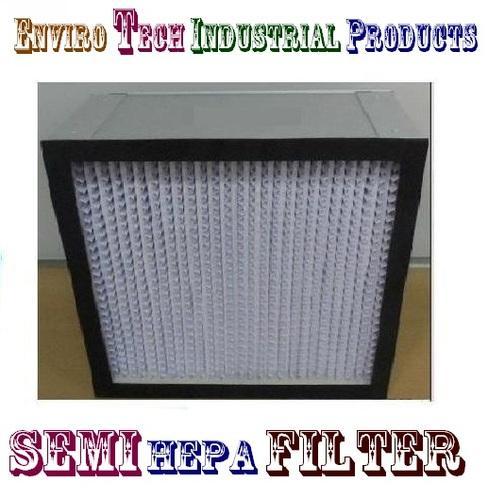

Semi HEPA Filter

Suitable for:

Air filtration of 0.3µ to 1µ w particles.
Secondary filtration for in Critical Clean room Industry Such as Vaccine, Production Work, Injection filling Work etc.
Final filtration in Minor 0.T S & in-patient-care, Photo Film Industry.

Features:

Filter media micro fiber glass snd paper deep pleasted panel
Media support aluminum foil / hot melt
Frame material aluminum / GI
Frame type box / flange / channel
Max. Op. Temp. 80^oC
Sealant epoxy sealed
Gasket syn rubber

Other Information

Pay Mode Terms: T/T (Bank Transfer)

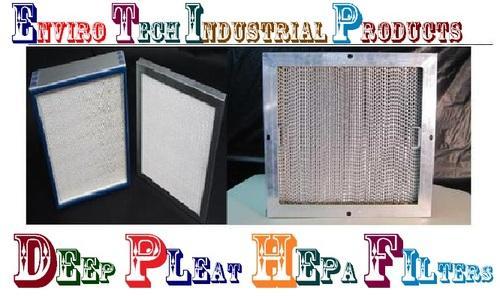

Deep Pleat HEPA Filters

Being a client centric organization, we are involved in manufacturing and supplying a wide range of deep pleat hepa filters. These specially designed and developed filters are available in various dimensions and technical specifications. Entire range of our deep pleat hepa filters is made under the firm direction of quality controllers, who ensure us for the delivery of 100% defect free range at our clients’ end.

Features:

Low resistance
Large dust holding capacity
High efficiency

Other Information

Pay Mode Terms: T/T (Bank Transfer)

High Efficiency Particulate Air Filter

We put forward a broad range of High Efficiency Particulate Air Filter. It is ideally suitable for protection against harmful particles emitted from radioactive substances. Our offered filter is manufactured in adherence with the set industry standards using advanced technology and optimum quality raw material. In tune with international quality standard, we provide the entire range in various sizes and specifications as per the requirement of our clients. Our quality controllers perform a series of test on various parameters, in order to ensure the quality of this filter. Apart from this, clients can avail the entire range from us at industry leading rates.

Features:

Easy to clean
High efficiency
Compact size

Technical Specifications :

Flange Type & Box Type
Sizes Available: 610 mm x 610 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm

Customized Sizes Are Available On Request
Filtration Rating: 0. 3 Micron & More
Frame Material: SS 304 / GI (Galvanized Steel) / Aluminum.
Filtration Efficiency: 90- 99. 9 %
Filter Media: Glass Fiber Media / Spun Bonded Polyester Media.
BS EN 779 CLASS - H10, H11, H12, H13, H14 upto U17
Filter Efficiency - H10 - 95 % @ 0.3 micron
H11 - 99.9 % @ 0.3 micron
H12 - 99.97% @ 0.3 micron
H13 - 99.99% @ 0.3 micron
H14 - 99.999% @ 0.3 micron
Eurovent Class - EU 10, EU 11, EU 12, EU 13, EU 14 upto U17

Applications:

Clean rooms for micro component electronic manufacture & assembly.
Pharmaceutical processing.
Aerospace engineeing.
Genetic & biological researh.
Biohazard atmosphere.
Laminar flow workstations.
Bio safe hood { biological safety cabinets}.
Hospital operating theaters & intensive care unit.
Atomic research.
Pre filter stage to ulpa systems.

Performance :

These filters have an efficiency of 99. 97% down to 0. 3 micron of dop aerosol.

Nominal sizes mm	Rated flow cmh	Initial resistance mm wg
610 x 610 x 150	850	25. 00
610 x 610 x 293	1700	25. 00
915 x 610 x 150	1250	25. 00
1220 x 610 x 150	1700	25. 00

Other Information

Pay Mode Terms: T/T (Bank Transfer)

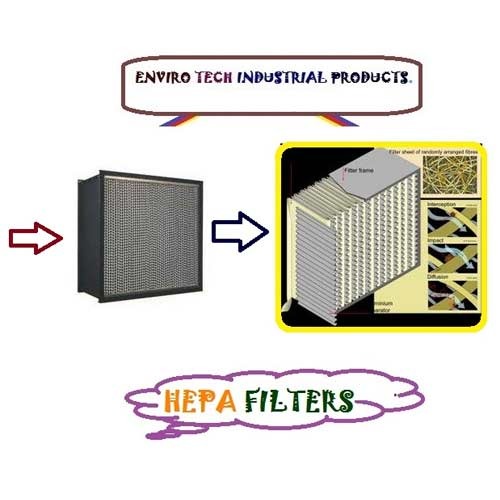

HEPA Filters

These Filters are HEPA filters certified to be a minimum of 99.97%, 99.99%, or 99.999% on 0.3μm per Mil. Standard 282. Ultra seal filters are available in a variety of framing materials, galvanized steel, aluminum, stainless steel, and particleboard. Frame types include DTF (double turned flange), single and double-header, box, groove seal, reverse groove seal, and C-style in metal. In wood, frame styles include box, groove seal, single and double-header. Three flow rates are available to meet varying fan capacities, Standard, Low Resistance, and High Capacity The standard models can be utilized up to 220ºF (104ºC), and 100% RH. A High Temperature version is available for temperatures up to 500 ºF (260ºC) for prices call our toll free number. HEPA Filters are designed to meet the critical filtration requirements where airborne contaminants can cause damage in manufacturing processes, equipment, or may cause health hazards. Only materials that meet our stringent quality standards are utilized. All manufacturing steps are closely monitored to insure that every filter will perform as expected.

Certified Efficiencies:

99.97%
99.99%
99.999%

Other Information

Pay Mode Terms: T/T (Bank Transfer)

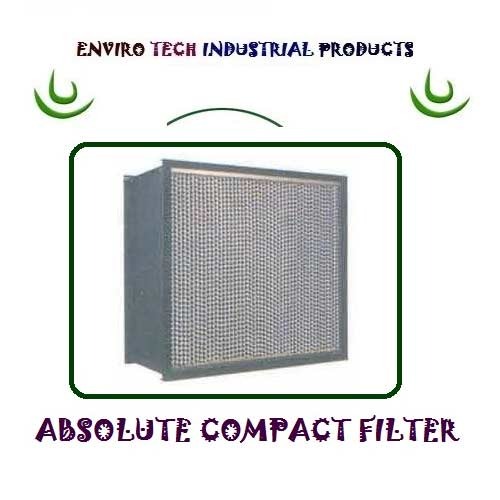

Absolute Compact Filter

High Performance in Compact Design

Absolute/Compact Filters are designed for use in HVAC/Industrial Applications requiring cleaner air but where HEPA Filtered air is not required. These filters are also known as Efficiency Particulate Air Filter (EPA).
The micro fine glass fibre paper with backing media folded to form deep folds and corrugated Aluminium foil separators used to separate the pleats in the filter pack.

Features and Specifications:

Maximum utilization of the media
Longer service life and high dust holding capacity
Suitable for Variable air flow
Robust Design
Media : Micro Fine Glass Fibre (Imported) with backing media
Frame : aluminium/Galvanised Iron / Stainless steel
Style : Box / Flange
Filter Class EN1822 : E10-E12
Efficiency (%) : 95

Other Information

Pay Mode Terms: T/T (Bank Transfer)

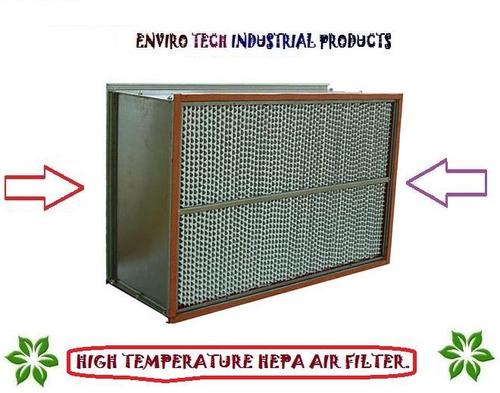

High Temperature HEPA Air Filter

Enviro Tech Industrial Products have High Temperature HEPA Filter are designed for the air intake and extract systems of critical applications where high efficiency filtration is necessary. High Temperature HEPA Filter are capable of retaining particulate matter down to 0.01 microns. High Temperature HEPA Filter are available with efficiencies between 95% and 99.999%.

Features:

Low initial pressure drop.
High dust holding capacity.
High cost / performance ratio.
Wide range of standard sizes.
Individually leak tested.

Specifications:

Type :

Deep pleated Flange or Box Type

Casing Construction :

GI /Aluminum anodized/SS 304

Separators Corrugated :

Aluminum

Filter Media :

Micro fiber glass paper (Imported)
Sealant Polyurethane based
Gasket Neoprene rubber gasket

Filter Efficiency :

99.99% @ 0.3 micron

Applications:

Fine particulate filtration in
Hospitals (Operation Theater)
Clean room applications
Clean room equipments

Please call on Enviro Tech Industrial Product Technicians for special grade high temperature (650°C) Hepa Filters (H13 / H 14)

Other Information

Pay Mode Terms: T/T (Bank Transfer)

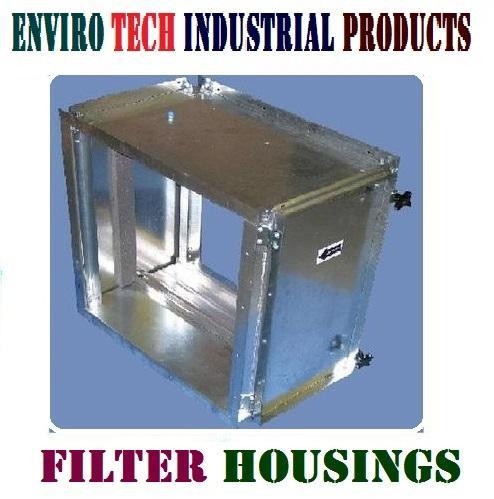

Filter Housings

Air Filter Housings are standard module constructed casings, designed to fit all types Pre, Fine, Pocket, Compact, HEPA and Carbon Filters.

Modular Design
Ensures airtight filter installation
Material Galvanised Powder Coated or Stainless Steel
Gasket sealed access doors
Easy Servicing
Available for different type of filters and sizes

We also Manufacture Terminal Housing for HEPA filters.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

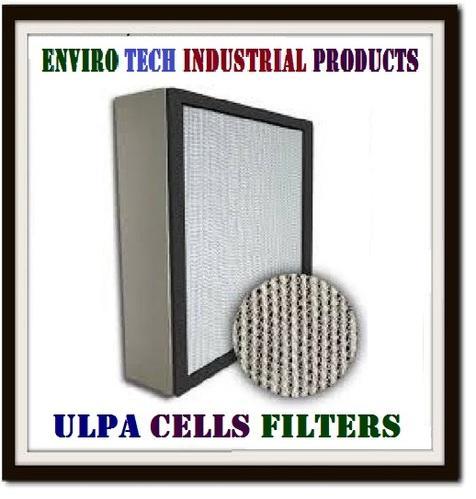

Ulpa Cells Filters

Ulpa Cells Filters are used in situations requiring high or very high level of purity. They are primarily designed as intake filters for low turbulence displacement flow clean room ceilings and clean workbenches.

Typical applications can be found in: microelectronics, semiconductor manufacture, medicine, chemistry, pharmacy, microbiology, film and magnetic tape production, compact disk manufacture, laboratories and the food industry.

Low initial pressure drop
High dust holding capacity
High cost / performance ratio
Wide range of standard sizes
Individually leak tested
Factory extruded, lockable type, 69 mm Aluminium casing
Compact in size and light in weight

Applications:

Laminar flow for clean benches & other
Clean room equipments
Clean room applications

Construction:

TYPE : Flange or Box.

CASING CONSTRUCTION : Galvanized steel / CRCA powder coated /Aluminium anodized/SS 304.

SEPRATORS : Corrugated Aluminum.

FILTER MEDIA : Micro fibre glass paper (Imported)

SEALENT : Polyurethane based
