To get accurate readings over a wide temperature range Setra Pressure Transmitter is a thin-film sensor has high-end capabilities.It provides stability in the most of the applications of large volume OEM installations.Made from the quality components the transmitter features lists a number of positive attributes such as thicker diaphragm and a restrictor optional to measure the extreme temperature where positive or negative pressure spikes is a concern for environmentalists.

Features:

Polycarbonate front & back cover
Double pressure limits
Four digit display

Yes ! I am Interested

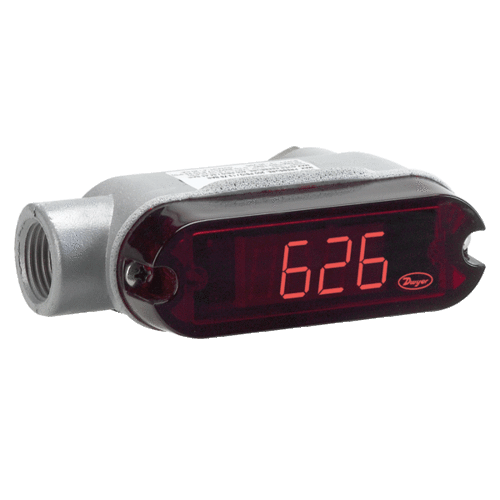

Sound infrastructure has helped us in presenting clients with the premium quality of Dwyer Industrial Pressure Transmitter. The Dwyer industrial pressure transmitter is known for its compact design and longer functional life. By following total quality management, the quality of the industrial pressure transmitter is never compromised.

Features:

• Easy to operate and maintenance
• Compact design
• Enhanced functional life

Yes ! I am Interested

 Features:

Yes ! I am Interested

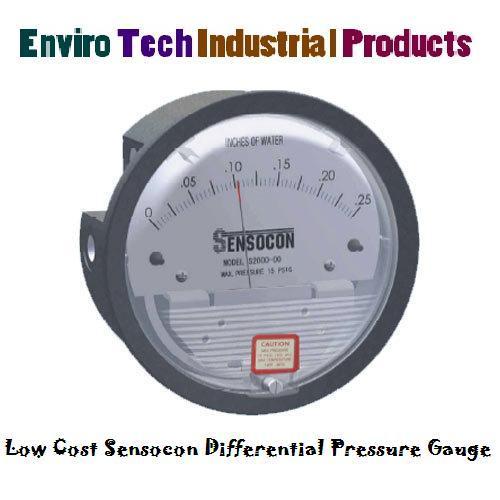

We are one step ahead of our competitors in supplying a wide range of Low Cost Sensocon Differential Pressure Gauge. These premium quality products are manufactured using high-grade raw material, which is obtained from the most authentic and leading vendor in the market. Skilled professionals are hired to provide proper guidelines to our staff to manufacture high quality range of these products. The product is used for various purposes in different industries like filter Status, Duct Static, Pressure Clean Room Pressure, Building Pressure,Fan and Blower Pressure.

Specifications:

• Accuracy 2%
• Mounts in Industry
• Type : Arrow indicator
• Die Cast Aluminum Housing
• Standard Holes
• Temperature : 20 to 140 F

Yes ! I am Interested

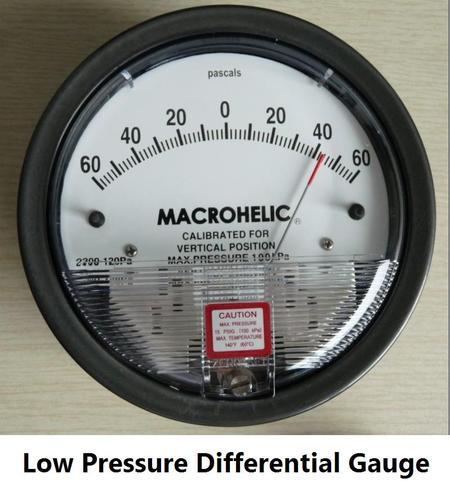

 Low Pressure Differential Gauge for pharma companies.

Yes ! I am Interested

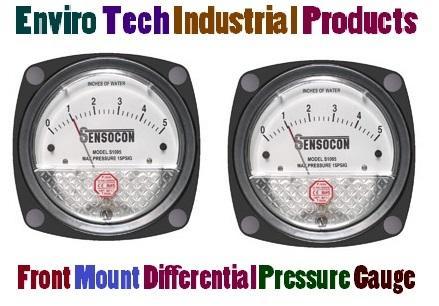

The Series S1000 Front Mount Differential Pressure Gauge makes panel mounting quick and easy. The S1000 is a diaphragm operated gauge for measuring positive, negative, or differential pressure. The S1000 was designed to allow quick installation saving time and money. This includes easy front mounting with 4 screws without any additional hardware required, and quick tubing connections with molded-in pressure fittings. The Series S1000 Front Mount Differential Pressure Gauge has a span adjustment on the back of the gauge for calibration adjustments. In addition to the time savings offered by the Series S1000 Differential Pressure Gauge, the gauge is based on the same rugged design as the S2000, which allows for years of trouble free operation.

Pressure Limits:

-20” Hg to 15 PSI (-0.677 bar to 1.034 bar)
Media Compatibility:
Air and compatible gasses

Accuracy:

+/- 2% full scale (+/- 3% on -0 and +/- 4% on -00) throughout range at 70°F (21°C)
Temperature Ranges:
20° to 140°F (-7° to 60°C)
Housing Material:
Die cast aluminum case with ABS flange and acrylic cover

Process Connection:

Duplicate high and low recessed, push on connections for 3/16” tubing – one pair side and one pair back
Weight:
1 lb 2 oz (510 g)
Accessories:
2 connection plugs, 4 mounting screws, 4 screw caps, 2 static pressure connectors, and 3 feet of vinyl tubing
Agency Approvals:
RoHS, CE

Yes ! I am Interested

We are one step ahead of our competitors in manufacturing and supplying a wide range of Low Cost Sensocon Differential Pressure Gauge. These premium quality products are manufactured using high-grade raw material, which is obtained from the most authentic and leading vendor in the market. Skilled professionals are hired to provide proper guidelines to our staff to manufacture high quality range of these products. The product is used for various purposes in different industries like filter Status, Duct Static, Pressure Clean Room Pressure, Building Pressure,Fan and Blower Pressure.

Yes ! I am Interested
