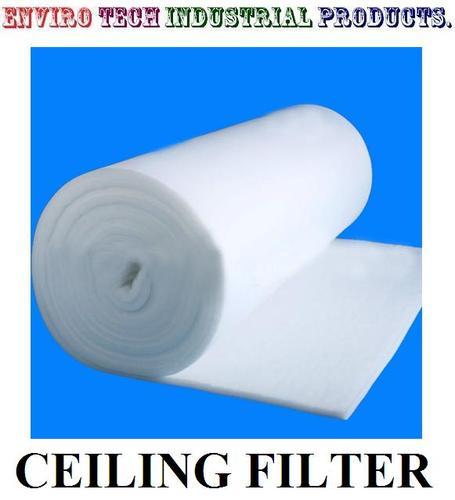

Ceiling Filter

Ceiling Filter - Synthetic in roll

These are ceiling filters for are used for spray booth. Our ceiling air filter are made of progressively structure media made using synthetic thermo bonded fibers - adhesive coated in depth. We also offer sizes which are customized as per specific customer requirements. We are well known ceiling filter media exporter offering them at market leading prices.

Item – Ceiling Filter

Model – CF-560

Thickness – 25 mm

Roll Size Avbl – 0.8m x 22m / 1.0m x 20m / 1.6m x 22m / 2m x 20m / 2.1m x 22m

Other Information

Pay Mode Terms: T/T (Bank Transfer)

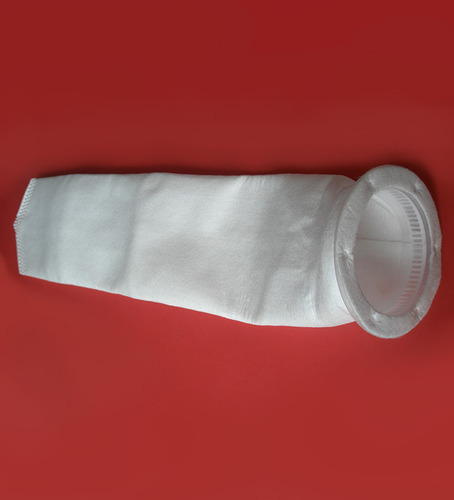

Jumbo Housing Bag Filter

BAG FILTER FOR 20 JUMBO HOUSING

Big Bag Filter designed to fit all regular 20 big housing.
Bag Filter for 20 Big Jumbo Housing are suitable for a broad variety of commercial uses and are commonly used as Pre Filters for large commercial plant where high flow rates are required.

Specifications

1 Big Bag Filter

Glass Fiber Filter Pads

With rich industry experience we are manufacturing and exporting superior quality of Glass Fiber Filter Pads that is available in different thickness & sizes. These filters find applications in various industries and are offered in various specifications to our clients. Clients can avail these at affordable prices. Our ranges of these are widely appreciated for their best performance, dependability and long functional life.

Available In

Thickness : 2", 4"
Roll size standard : 2 m X 20 m, 0.8 X 20 m, 1 m X 20 m
Roll size non standard as per customized sizes
Also available with scrim (Net Support), Spool and Core
Ceiling and Floor Filters are also in our regular range

Features

Temp resistance : 170^oC

Type : Supply slices or rolls size
Media
- Fiber glass with gradual density
- Inlet side : Green/Yellow colored
- Outlet side : White
EN779 class : G2 G3 G4
Average arrestance : 93% (ASHRAE52.1-1992)
Eurovent4/5 class : EU2, EU3, EU4
Average separation efficiency : 95 %
Final resistance : (suggest) 130 Pa - 200 Pa

Other Information

Pay Mode Terms: T/T (Bank Transfer)

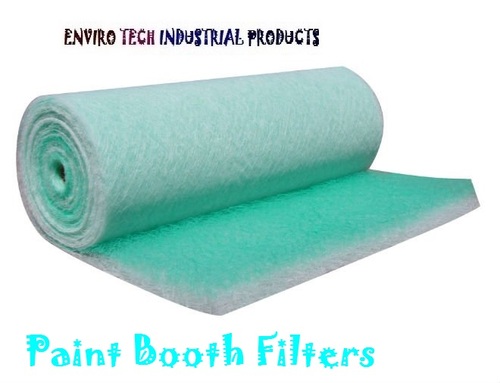

Paint Booth Filters

Paint Stop Spray Booth Fiberglass Filter Media, Flexible Air Filter Media Rolls / Pads

Competitive Advantage:

Low initial resistance
High separation efficiency
Different color on inlet and outlet side
Flexible
Economical and pratical
Supply rolls or cut to pads

Applications:

Used in the spray booth or filter mist in the kitchen
This filter is able to absorb the dissociation paint particles completely and keep the discharged air clean and the air circulated in the spray booths becomes much purer.Replacing the filter timely can avoid the paint particle block and prevent the danger caused by the high pressure in the spray booth.

Description:

General Description: Paint stop LHG fiberglass filter media air filter material
Weight:250g/m2
Thickness: 60mm
Air Flow Rate: 4320m3/hr
Initial resistance:13Pa
Final resistance: 250Pa
Media Arrestance:67.6%
Air velocity: 1.2m/s
Dust Holding: 3540g/sqm
Max Temperature: 350 C
Filtration Class:G3(DIN 24185)
Flame Resistance: F1(DIN 53438)
Specification: 0.8mx20m;1mx20m;2mx20m
Type with glass fiber matting or without plastic mesh backing.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

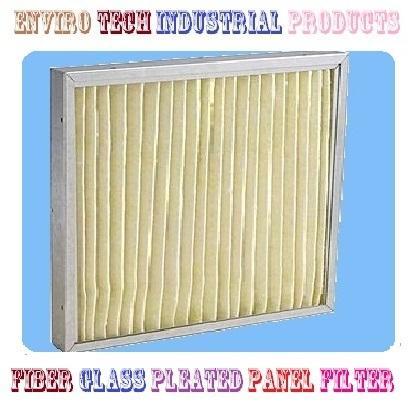

Fiber Glass Pleated Panel Filter

Application: Pre filter for comfort air conditioning applications.

Type: Coarse dust panel filter.

Frame: Standard galvanized mild steel stainless steel or aluminum

Media: Glass fibre.

Gravimetric efficiency: 75% - 85%.

Eurovent 4/5 efficiency: EU2, EU3.

Temperature: 120°C maximum in continuous service.

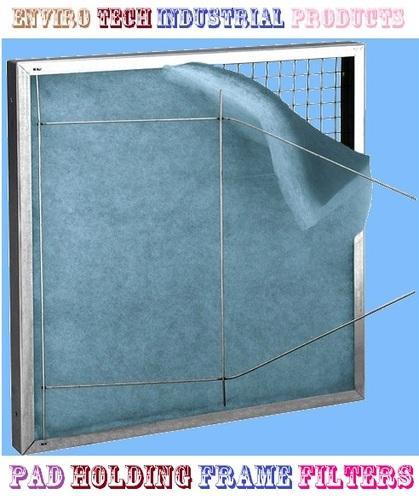

Pad Holding Frame Filters

Application: Pre filtration in air conditioning or industrial processing systems.

Type: Coarse grade filter.

Frame: Standard galvanized mild steel stainless steel or aluminum

Media: Synthetic / glass fibre.

Arrestance efficiency: 65% - 90%.

Eurovent 4/5 efficiency: EU2 - EU4.

Temperature: 80°C maximum in continuous service.

Humidity: 100% RH.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

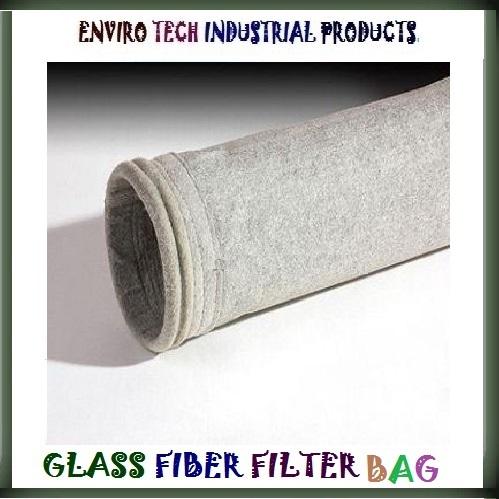

Glass Fiber Filter Bag

These Fiber Glass Filter Bag manufactured using superior quality fabric and other material in tandem with international guidelines. Due to features like high dirt holding capacity low pressure drop low maintenance and excellent performance our offered Fiber Glass Filter Bags are widely applauded in the market. Moreover, our experts make sure that these bags are delivered at clients end within the stipulated time-frame.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

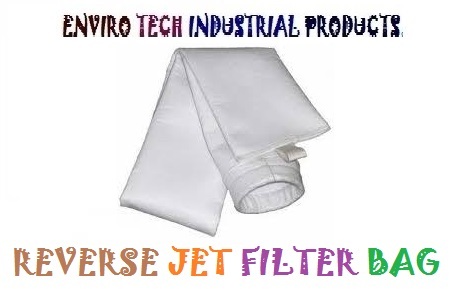

Reverse Jet Filter Bag

Reverse Jet Filter Bag and Reverse Jet Bag Filter from us. The range of reverse jet filter units are designed to cater for more specialist dust that cannot be handled by the standard shaker type filter systems. Reverse jet / reverse pulse units are normally required where a constant air volume is needed without possibility of the equipment being shut off for cleaning. To achieve this maintenance of the designed air volume at pre-determined intervals a burst of compressed air is released from the reservoir on the unit inducing a shock wave and short back flow of air into the cartridges or bags. This breaks free the dust cake formed on the outer surface of the cartridge or bag allowing this to then freely fall into the hopper at the base of the unit. This is all controlled automatically with an electrical panel mounted on the unit.

To cater for the wide variation of air volumes encountered in these types of systems we are able to offer a variety of fan options which can be mounted either directly on the units or at floor level adjacent to the units. Alternatively the units may be provided without fans for incorporation into either existing systems or fitting with free issue fans. Our engineers are at hand to select the correct fan for your particular requirement when necessary or at anytime for assistance.

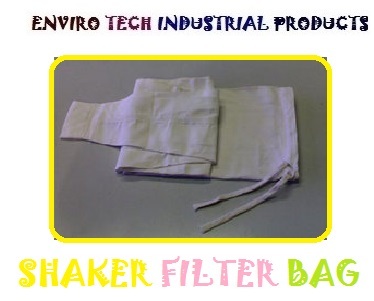

Shaker Filter Bag

Manufacturer supplier and exporter of Shaker Filter Bag.Filter bags are one of the most important part of a dust collector. We manufacture filter bags like shaker type dust collector in a number of designs; ENVIRO TECH Filters gives Special consideration on fabric selection fabrication technique and designs to give the best performance.

Acrylic Needle Filter Bag

Our company is prominent in providing a wide range of Acrylic Filter Media to the valuable patrons. Our Acrylic Filter Bag is manufactured by making use of the optimum quality raw material. Normally in filtration acrylic refers to homo polymer acrylic which is essentially made from 100% of acrylic nitrite. Occasionally less expensive lower performance co polymer acrylics are used.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

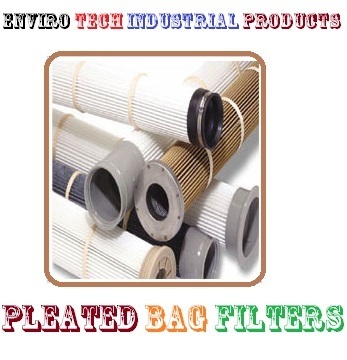

Pleated Bag Filters

We are successfully ranked amongst the top manufacturers and suppliers of a qualitative range of Pleated Bag Filters. Fabricated using optimum quality factor inputs and sophisticated technology they are designed in compliance with the international standards. These filters are widely praised among our valuable clients for their easy installation, leak proof nature and high durability. Apart from this, they are stringently tested on various parameters of quality in order to deliver flawless range at clients end.

Description:

Pleated Filter Bag features a unique filter design that can be retrofitted into the existing bag collector thus increasing the volume of air passing through each bag
The increased air capacity of the filter is due to a greater surface area
The Pleated Bag features a PU flange at the top & bottom and has an integrated inner core made of metal
All the filter mediums used in the pleated bag are of polyester
The installation procedure is simple and the part is made of Synthetic material which prevents damages that may occur when other components are utilized

Pleated bag filter have the following:

Easy to install
Easy to remove
Leakage prevented
Stable and cannot break or fall through the sheet
The filter area is 2-4 times larger than that of traditional bags
These bags can withstand temperature up to 130 deg. Centigrade
High air to cloth ratio and a high dust load capacity
Open pleat spacing
Low consumption of air during cleaning process
High efficiency due to surface filtration

Other Information

Pay Mode Terms: T/T (Bank Transfer)

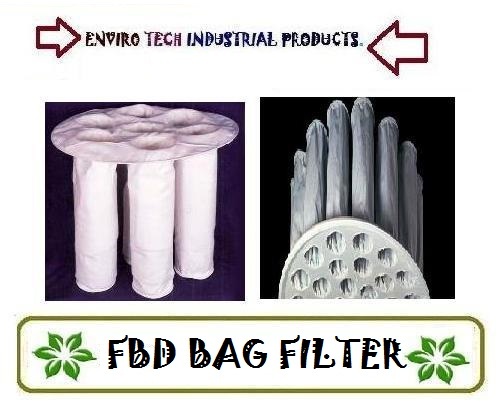

FBD Bags Filter

Fluid Bed Dryer used under the system of Heat transfer by forced convection it is applicable when your input is in granual or in crystal form and your end product is in powder form. During the operation drying gas is passed through the bed of solids at a velocity sufficient to keep the bed in fluidized state which promotes high heat transfer and drying rate. Our filter bags give you the excellent output from you FBD machine.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

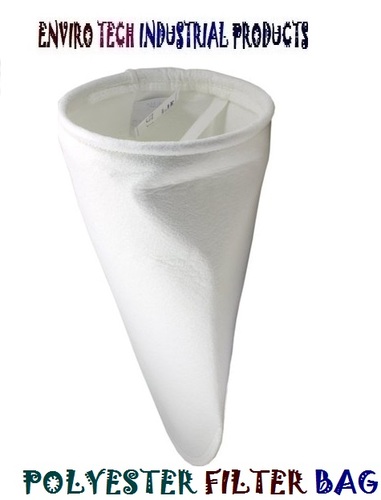

Polyester Filter Bag

Manufacturer supplier and exporter of Polyester Filter Bag. These Polyester Filter Bag is manufactured using high grade raw material. Our entire range of Polyester Filter Bags are available at market leading prices.

Features and Benefits

High performance
Broad chemical compatibility
Available in needle felt and mesh type material
Wide selection of filter media. e. g. Polypropylene Polyester Nylon Cotton non woven
Various micron ratings from 1 to 200 (felt material)
Positive sealing arrangement with S.S or rubber or plastic collar or by snap band type ring
Available in single and double length.
All material is FDA compliant

Applications

Drinking water and water treatment plants
Pharma applications: fluid bed dryers certifuges bags
Highly viscous fluids
Resin Adhesives
Paint Ink Varnish
Lubricants Cooking oil Coolants
Dust Collectors in cement dyes carbon steel & aluminum industries.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

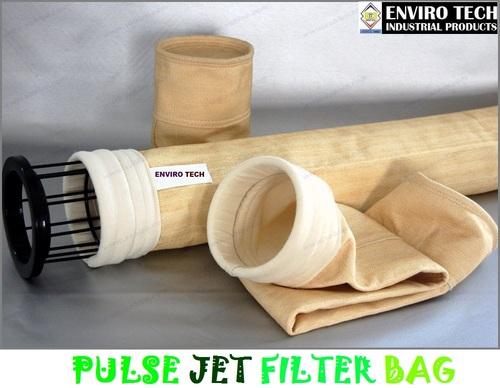

Pulse Jet Filter bag

Manufacturer of Pulse Jet Filter bag. As far as The Pulse Jet Filter bag Concern it consists of filter cylinders(bags) enclosed in a metal housing. In operation dust-laden air enters through the center of bag filter. Either pressure or suction delivers the dirty air to the hopper. The fine practices travel upward and collect on the filter bags. The clean air passes through the bag and is vented to the atmosphere. A high pressure jet of compressed air directed through the bag at timed intervals removes the dust which is deposited in the hopper and is easily collected for disposal or recovered for use.

Pulse Jet Filter bag : The dust-tight Pulse Jet Filter bag has three section: a plenum at the top a collector housing in the center and a hopper at the bottom. A plenum houses the blow tubes and supports for the solenoid valves. Clean air or gas is discharged through the exhaust outlet in the plenum. The housing contains the filter bag assemblies. Below the housing is the hopper which contains the inlet. A diffuser in the hopper, adjacent to the inlet absorbs the impact of the high velocity dust particles and properly distributes the incoming air. Pressure drop, which measures collector performance, is indicated by a ENVIRO TECH Gauge connected at one end to the filter bag section and to the clean air plenum at the other end. A Gujtex rotary airlock is recommended as a discharge valve to handle the collected dust.

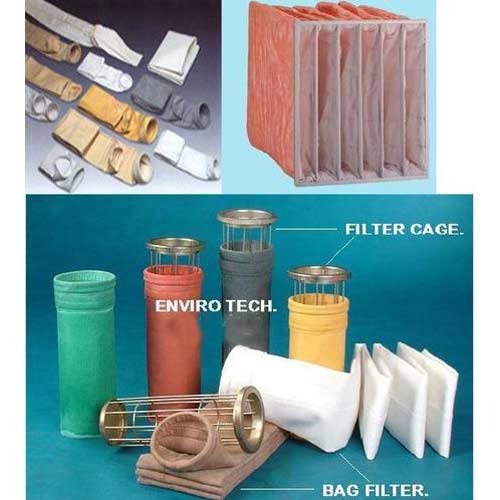

Pocket Filter

Outfitted with a modern infrastructure, we are the most prominent manufacturer trader exporter and supplier of a wide array of Pocket Filter. This filter is manufactured using optimum quality raw material and advanced technology. We provide this range to our clients in various specifications. Clients can avail the offered filter from us at market leading prices.

Features:

Optimum quality
Precisely design
Well sealed

Specifications:

Type :	Box & Flange.
Frame :	Metallic Sheets Rods With With Powder Coating.
Media :	Thermally Bonded Synthetic Filter Media.
Efficiency :	50-99% Down To 20-3 Micron.
Recommanded Final Pr. Drop :	40 mm wc.
Temp :	70⁰c. Max.
All Standard Size:	Customized Size.

Other details:

Customaries sizes are available
Filtration rating: 1 5 10 25 micron

Other Information

Pay Mode Terms: T/T (Bank Transfer)

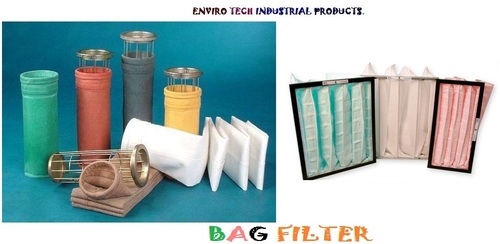

Bag Filter

Outfitted with a modern infrastructure we are the most prominent manufacturer traderb exporter and supplier of a wide array of Bag Filter. This filter is manufactured using optimum quality raw material and advanced technology. We provide this range to our clients in various specifications. Clients can avail the offered filter from us at market leading prices.

Features:

Optimum quality

Precisely design
Well sealed

Specifications:

Type :	Box & Flange.
Frame :	Metallic Sheets Rods With With Powder Coating.
Media :	Thermally Bonded Synthetic Filter Media.
Efficiency :	50-99% Down To 20-3 Micron.
Recommanded Final Pr. Drop :	40 mm wc.
Temp :	70⁰c. Max.
All Standard Size:	Customized Size.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

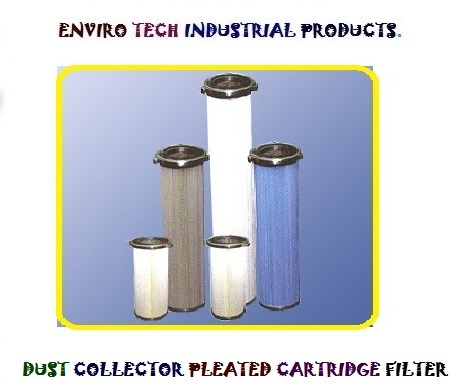

Dust Collector Pleated Cartridge Filter

We offer a number of dust collector pleated standard filters that are available in three different diameters such as 150mm 225mm and 325mm. These flanges are made from aluminium / stainless steel and its base and interior baskets are from 1.2mm galvanized steel.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Dust Collector Pleated Bag Filters

We fabricate specifically designed dust collector - pleated bag filters that can be retrofitted into existing bag collectors which result in increasing air volume passing though each bag. These pleated bag filters have PU flanges at the top and bottom and has integrated inner core made of PP. These filters have a number of salient features including:

Easy installation
Easy removable parts
Low consumption of air
Filter area 2-4 times larger than that of traditional bags
Synthetic parts which make these resistant to abrasion
Reduced downtime
Low maintenance cost

Other Information

Pay Mode Terms: T/T (Bank Transfer)

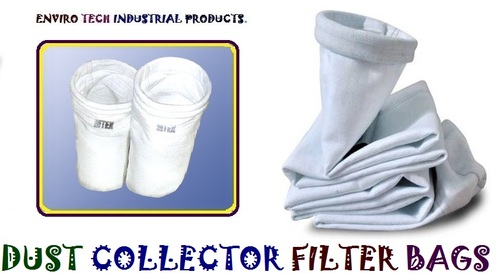

Dust Collector Filter Bags

We fabricate high quality dust collector convectional filter bags that are made from superior quality raw material such as base fiber. These dust collector filter bags are precisely fabricated under the strict quality control inspections right from the stage of procurement of raw material to the finished product. The dust collector filter bags are stitched according to clients requirement with the state-of-the-art stitching machines. These conventional dust filter bags are widely used in various industries including cement steel incinerators boilers power stations, salt processing, ceramic and many others. Further these offer an entire range of media as follows:

Polyester
Polypropylene
Acrylic (Homopolyrner)
PPS (Ryton)
P84 (Polymide)
PTFE (Teflon)

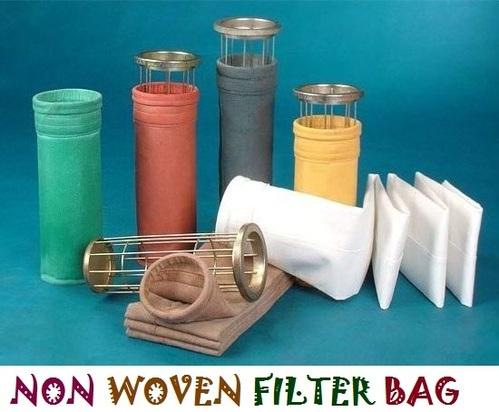

Non Woven Filter Bag

ENVIRO TECH filters is leading manufacturer and supplier of a comprehensive assortment of Non Woven Filter Bags. Non Woven Filter Bag are fabricated using superior quality fabric and advanced technology. The offered Non Woven Filter Bag are designed with high precision in order to meet the international quality standards. These Non Woven Filter Bag are Rigorously tested on various parameters by our quality controllers, Non Woven Filter Bag are available in varied patterns and sizes as per the varied demands of clients. In addition to this, Non Woven Filter Bags can be availed by clients from us at the most reasonable price.

Description:

Non Woven Filter Bags are stitched according to customers requirement with state-of-the art stitching machines.
Non Woven Filter Bags are used in a number of industries such as: cement steel incinerators boilers power stations salt processing, ceramic, portable dust collectors etc

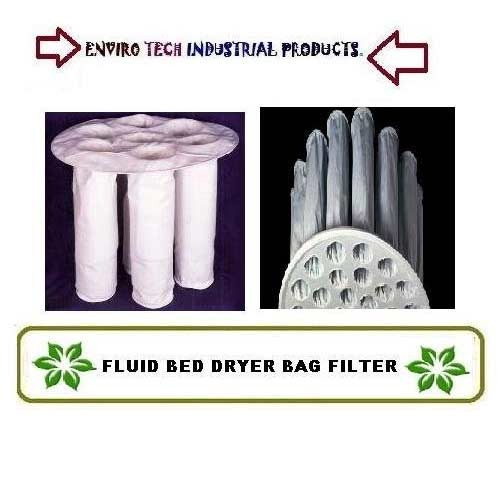

Fluid Bed Dryer Bags Filter

Having a definite quality management system, we are regarded as the noteworthy manufacturer trader exporter and supplier of an extensive gamut of Fluid Bed Dryer Bags Filter. These are used in various industries such as pharmaceuticals chemical industry beverage food etc.The offered range is meticulously tested on various quality parameters and is widely demanded in various industries. The provided range is manufactured by utilizing optimum quality raw material and latest technology. In line with international standard we provide the entire range in various customized options and at affordable prices.

Features:
