Single Skin Air Handling Unit

Our company is one of the most renowned companies for the manufacture and supply of a wide variety of electrical appliances. We are providing our clients with one of the best quality single skin air handling units which are manufactured using most robust and strong raw materials. These single skin air handling units are well equipped with filter section, coil section, fan section, mixing box section, face, bypass damper section, Fine Filter sections and other required facilities which are provided for specific requirements. These single skin air handling units can be power coated or painted and the fans used by us can be forward or backward rotating as per desired.

Features:

Cost efficient
Low power consuming
Reliable and efficient
Long lasting material quality
Low maintenance
Tough and strong

Other Information

Pay Mode Terms: T/T (Bank Transfer)

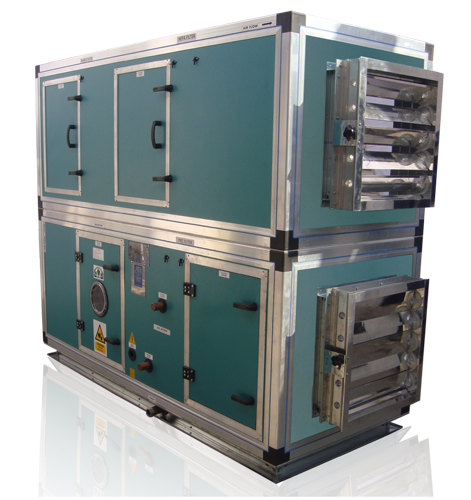

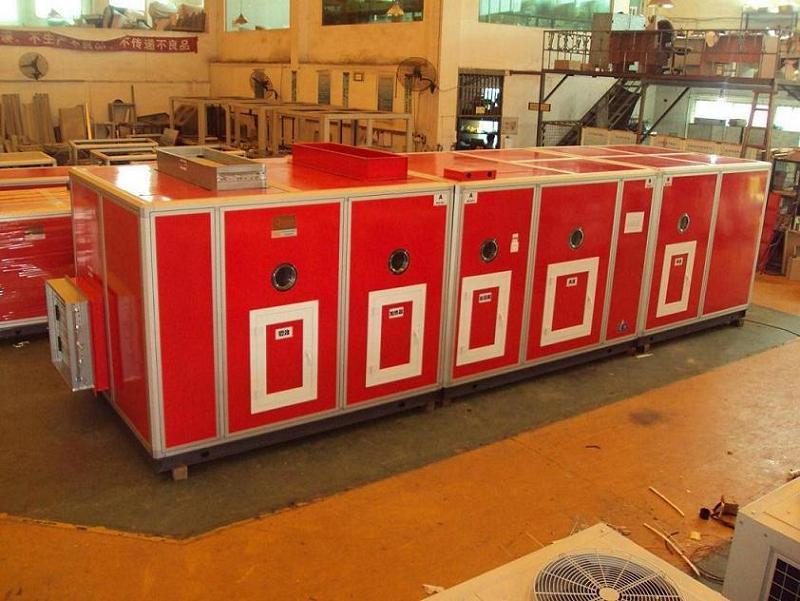

Double Skin Air Handling Unit

We are engaged in the manufacturing of Double Skin Air Handling Unit. These highly appreciated units are manufactured using latest technologies and painted plain GI sheets. Our units are recommended for durability efficiency and quality. According to the requirement of our clients we also offer customization services at nominal prices.

Special features:

Applications	Cooling Heating Humidification Ventilation
Frame Work	Mainframe work of self-supporting hollow extruded Aluminum profile. Thermal break construction as option.
Frame Panels	Double Skin CFC free PUF injected 25/43 mm thick panels.
Fan Section	Fan Section contains belts driven DIDW Forward / Backward curve imported fans.
Fan/Motor Assembly	Fan and Motor assembly mounted on common base frame of Extruded Aluminum Profile.
Coil Section	Coil Section designed for CHW/HW/DX high efficiency heat transfer coils.
Drain Pan	Dual Slopping Aluminum / SS-304 drain pan mounted on PUF insulated bottom panel.
Fitter Section	Flat Fitter Section designed for synthetic pleated pre-filters.
Outdoor Installation	Overhead Canopy available for outdoor installation .
Optional Sections	Mixing Chamber - For Fresh air / return air mixing. Manual / Motorized controls – optional. Micro V / Hepa / Bag / EU-4 / EU-7 / EU-12 / Filter Section. Heat Recovery. Wheel Section. Spray / Pan Humidification Section. Other Special Sections.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Air Handling Unit

We are specialized in manufacturing trading exporting and supplying a wide assortment of Air Handling Unit. Offered unit is manufactured by our experts using best quality raw material and advanced technology. Keeping in mind the requirements of our esteemed clients we offer this unit in various models and technical specifications. Moreover, our clients can avail the offered unit from us at market leading prices.

Features:

Sturdiness
Excellent performance
Low maintenance cost

Technical Specifications:

Type:

Horizontal vertical ceiling suspended as per customer requirement

Panels:

CFC free PUF injected (25mm/42mm) panel in double skin
casing structure (thermal break on request.
Extruded aluminium hollow profiles frames self-supporting type.

Drain Pan:

Aluminium/stainless steel.

Filter:

synthetic media filter are provided as standard microbe & hepa filter can also be provided on request

Coil Section:

Optimum circuit designed coil are provided for maximum heat transfer as per duty requirement.

Fans:

Nicotra/kruger centrifugal fan are used either SISW or DIDW type with forward cuve or backward curved driven with v belts as per static pressure requirements.

Application:

Air Conditioning Showroom Shopping Mall Restaurant & Bar Hotels Office Call Center Building Schools Studio Institute Hospital Pharma Company Clean Room etc.

Other Information

Pay Mode Terms: T/T (Bank Transfer)

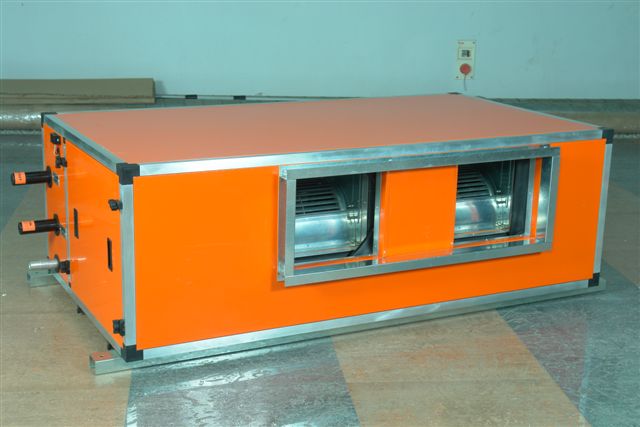

Single Skin Ceiling Suspended Air Handling Unit

Being an industry leader we offer a wide gamut of Single Skin Ceiling Suspended Air Handling Unit. These are fabricated using high quality material sourced from our trustworthy vendors. Our units are highly efficient and are offered in different sizes covering air capacities from 1000 to 42000 CFM at fixed pressure. We also offer customization services to our clients at reasonable prices.

Key Features:

• Quality range of models with airflow capacity from 2550 cmh to 8500 cmh
• Extruded aluminum profile framework for robust construction
• Low height advantage
• Energy efficient
• Smoke exhaust fan section
• Fan filter units
• Direct driven axial flow fans
• Pulley driven axial flow fans
• Limit load type centrifugal blowers

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Single Skin Horizontal Floor Mounted Air Handling Unit

Our company offers a wide variety of single skin horizontal floor mounted air handling unit.Manufactured using premium quality G.I sheets, which are powder coated these are available in various sizes and air covering capacities. Our company uses the best quality fans for our units. These machines are checked on varied parameters to ensure safety and quality.

Key Features:

• Quality range of various models with an air flow capacity from 1700 CMH to 57800 CMH
• Self supporting hollow extruded aluminium profile frame for robust construction
• High quality galvanized steel (powder coated) removal panels
• Optional component section
• Single DIDW forward/backward curve indigenous/ imported blowers
• No floor space required
• Drain pan-built in dual slope (Optional construction-S.S 304 Grade/Aluminium)
• Specially treated for low noise and vibration free operation
• Self-supporting hollow extruded Aluminum profile frame for robust construction
• Bottom/side access for maintenance
• High quality galvanized steel (powder coated) removal panels

Other Information

Pay Mode Terms: T/T (Bank Transfer)

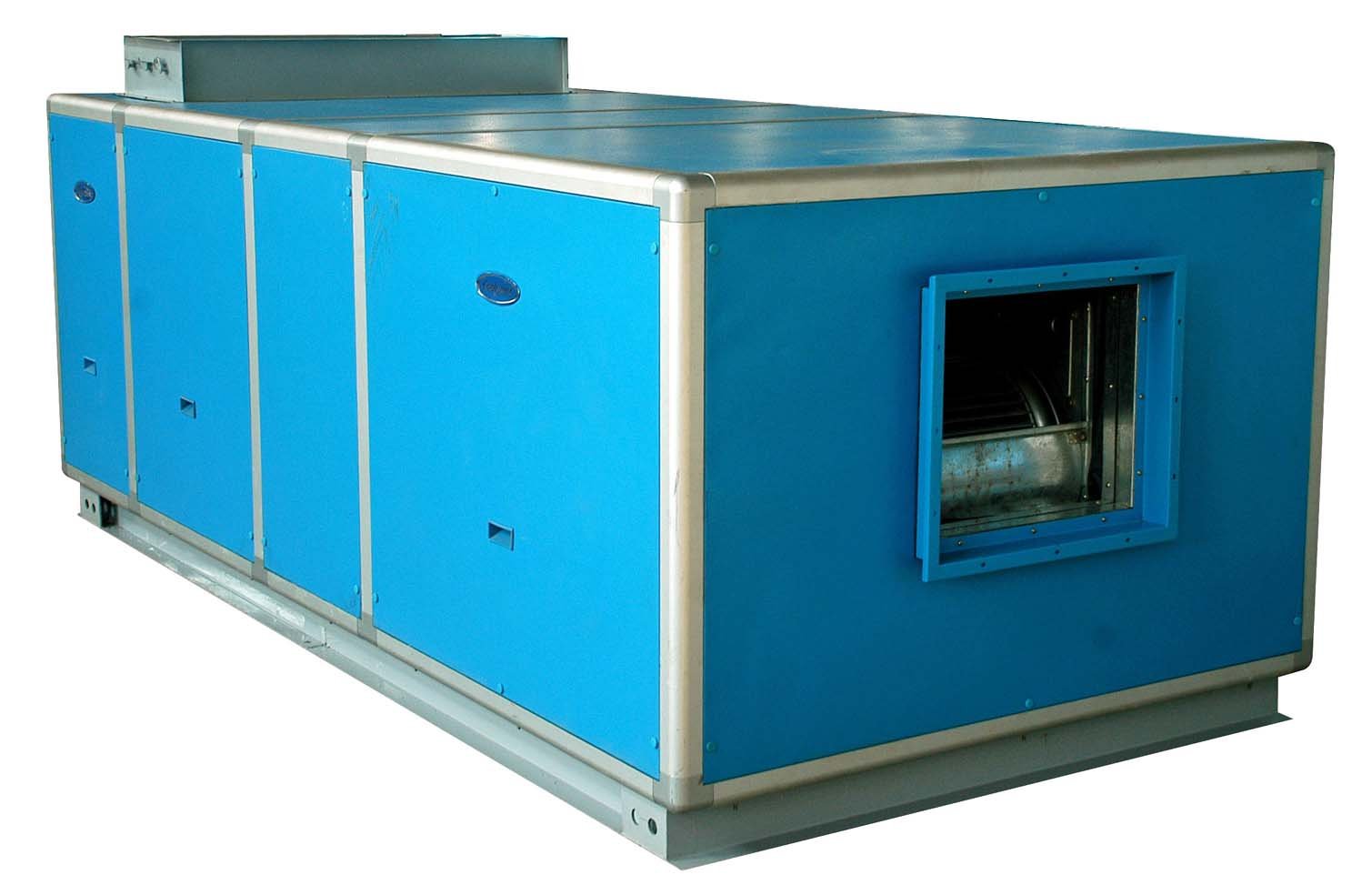

Pharmaceutical AHU Unit

We are engaged in offering a wide array of superior quality Pharmaceutical AHU. This product is assembled utilizing optimum quality components and fitments that ensure its proper working and easy maintenance.Further we provide this product in single and double skin casings fitted with statically and dynamically balanced impellers. Also, this product has ISI certified motors, high quality filters and high efficiency cooling /heating coils of various capacities.Due to its excellent performance high tensile strength easy installation and extended durability this has gained huge demand in the market

Other Information

Pay Mode Terms: T/T (Bank Transfer)

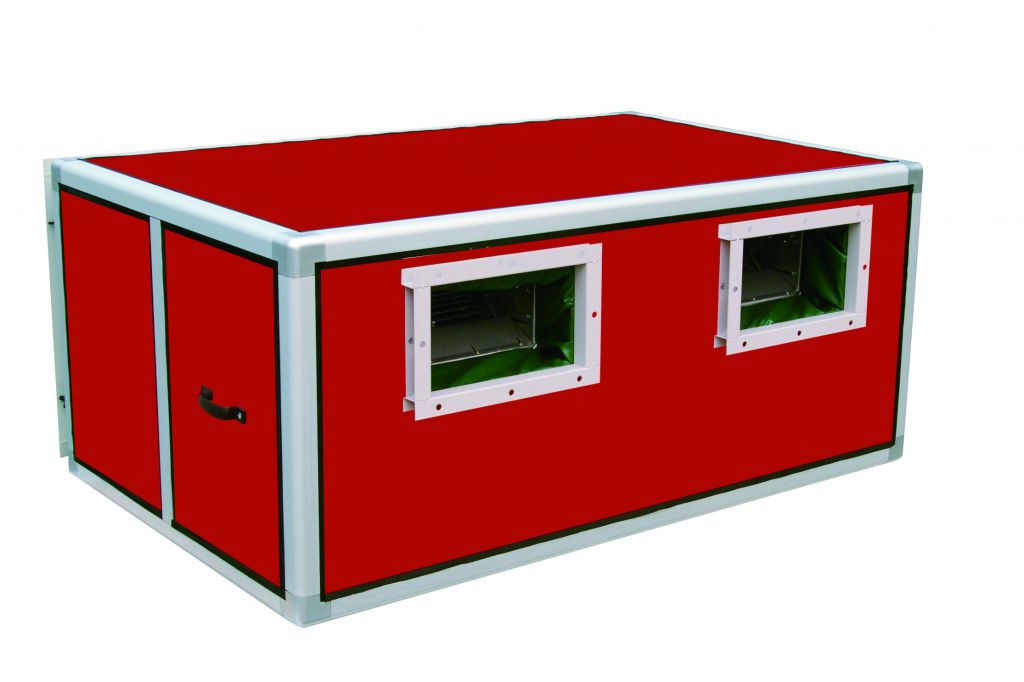

Compact Unit

Being one of the topmost and recognized firms of the industry we are providing a broad spectrum of Compact Unit. Owing to their compact designs customized solutions and effective prices, these are highly demanded and favored by our customers. Besides this we provide customized packing for these products to protect them from getting damaged during transportation.

Features:

Long lasting
Premium quality
Reasonable prices

Product Specifications :

Range	1000 CFM to 15000 CFM (Horizontal/Vertical)
Application	Central Cooling/Heating, humidity & clean room etc..
Construction	Mail frame of self supporting hollow extruded aluminum profile double skin panel in 25/43 mm thick PUF injected
Coil	Chilled Water / Heating / Direct Expansion Coil.
Fans	Belt driven DiDW / SiSW forward/backward curved direct driven
Filters	Aluminum Washable Optional bag type / micro V / hepa filters
Special	Computer added design to accommodation as per space available

Other Information

Pay Mode Terms: T/T (Bank Transfer)

Double Skin Compact Unit

Being one of the topmost and recognized firms of the industry we are providing a broad spectrum of Compact Unit. Owing to their compact designs customized solutions and effective prices these are highly demanded and favored by our customers. Besides this we provide customized packing for these products to protect them from getting damaged during transportation.

Features:

Long lasting
Premium quality
Reasonable prices

Product Specifications :

Range	1000 CFM to 15000 CFM (Horizontal/Vertical)
Application	Central Cooling/Heating, humidity & clean room etc..
Construction	Mail frame of self supporting hollow extruded aluminum profile double skin panel in 25/43 mm thick PUF injected
Coil	Chilled Water / Heating / Direct Expansion Coil.
Fans	Belt driven DiDW / SiSW forward/backward curved direct driven
Filters	Aluminum Washable Optional bag type / micro V / hepa filters
Special	Computer added design to accommodation as per space available

Single Skin Compact Unit

Recognized as one of the top most companies of the industry we are engaged in offering a wide variety of Single Skin Compact Unit at enormously affordable prices. Under the supervision of our professionals these units are designed fabricated and tested on various stages of the production process. Apart from this, we ensure to deliver them to our customers at their doorstep.

Features:

High strength
Various sizes and dimensions
Customized solutions

Air Handling Unit Repair

ENVIRO TECH INDUSTRIAL PRODUCTS recognise that in todays climate clients do not want the upheaval and expense of purchasing new air handling units. Our qualified technicians have the capability and technical expertise to provide the best option for you by either refurbishing or replacing older high spec equipment.

Advantages of A.H.U. refurbishment compared to replacement:

More environmentally friendly by re-using existing plant
Reduced cost compared to purchasing new units
Minimal plant downtime
Typically existing services are unaltered
Minimal disruption to the buildings normal operation
Use of existing access routes to bring new components to plant

We offer the following repair serivces to Air Handling Units:

Dampers
Actuators
Motors
Heating & cooling coils
New skins
Filters filter frames flooring and media
Drain pans
A/V mounts and flexible connections within the fan chamber
External and internal painting

For more specialised services please contact our sales team at

Other Information

Pay Mode Terms: T/T (Bank Transfer)

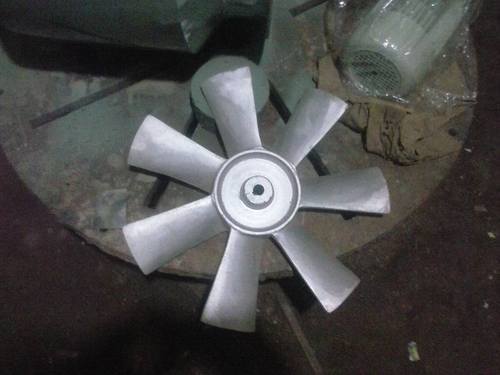

Aluminum Casted Axial Flow Fan Blade

Based on the skills of our adroit professionals and creative workers, we bring forth an extensive range of Fan Blade. Owing to features like durability and easy installation, the offered range is extensively demanded in market. A team of our skilled professionals, with a wide experience manufacture the offered Fan Blade using high grade raw material and modish technology.

Features:

Excellent finish
Optimum strength
Highly efficient

Panel Air Cooling Unit

Running with an inspiration to achieve highest level of patron gratification and reliability we are providing a distinctive collection of Panel Air Cooling Unitto our patrons. Accessible with us in diverse standard sizes and requirements we also offer the facility of altering their sizes as per the necessities and needs of our patrons. In addition to this we offer these in optimal grade packing material to our patrons.

Air Handler

Manufacturing Air Handler with following details:

Features:

Flawless finish
Less power consumption
Long operational life

Application:

Malls
Hospitals
Commercial complexes
Offices

Air Handler is available from Rs50 thousand to Rs 4 lakhs
