Dwyer Instruments Distributors - ENVIRO TECH INDUSTRIAL PRODUCTS
Magnehelic Gauge In Pappanamcode Industrial Estate Thiruvananthapuram
Magnehelic Gauge In Pappanamcode Industrial Estate Thiruvananthapuram

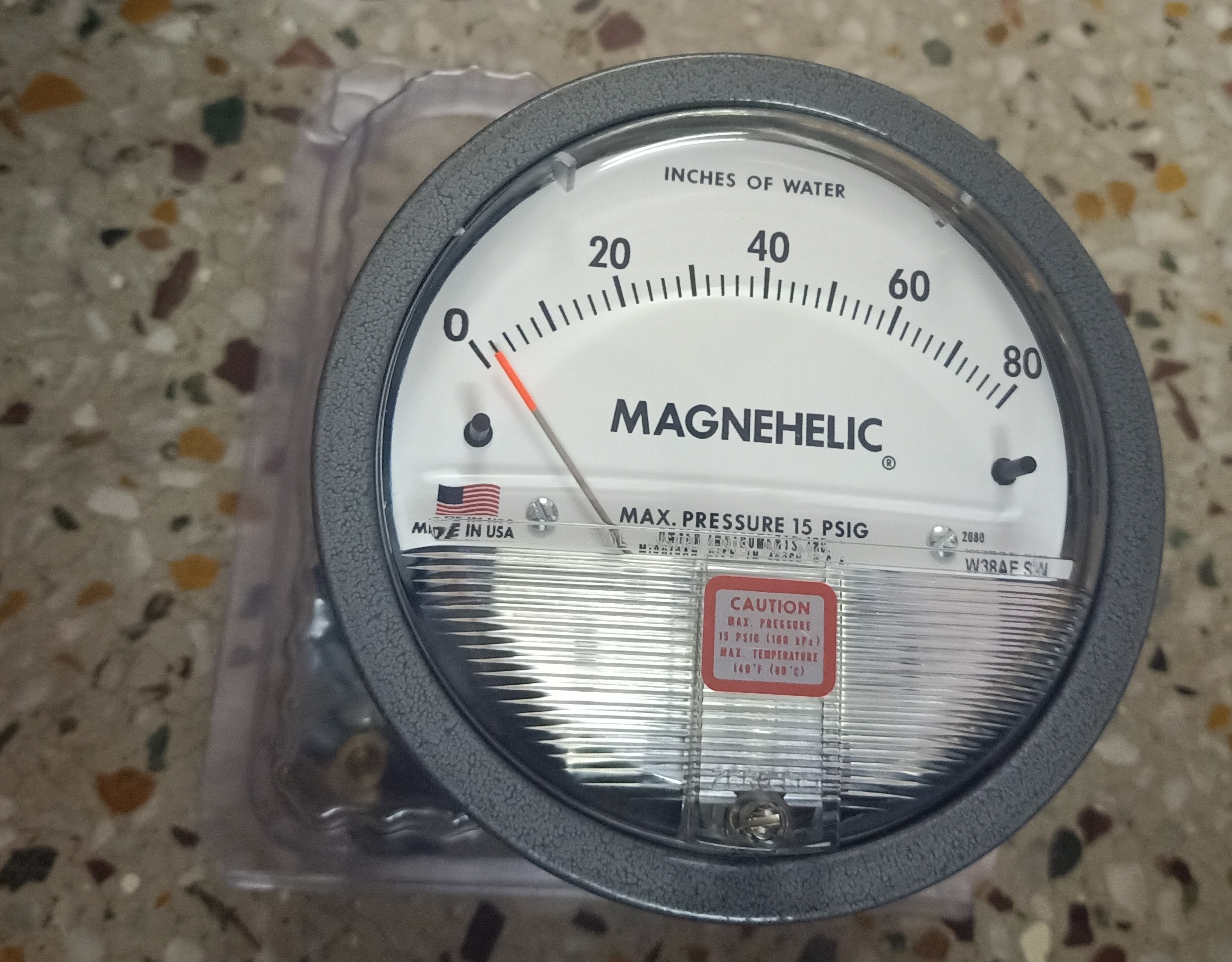

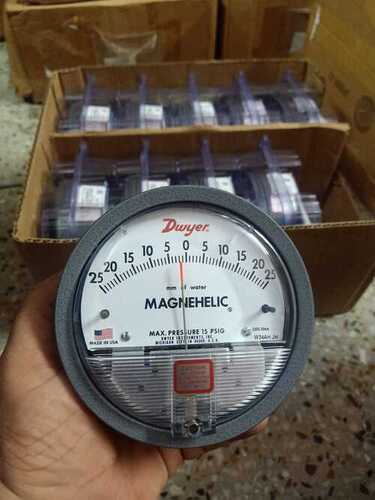

SERIES 2000 MAGNEHELIC® DIFFERENTIAL PRESSURE GAGES
Indicate Positive, Negative or Differential, Accurate within 1%
- No Power Required
- Low Cost
- Used in Isolation/ Hospital Environments and Temporary Units (No Power Required)
Select The Series 2000 Magnehelic® Gage For a Versatile Low Differential Pressure Gage With a Wide Choice of 81 Models And 27 Options To Choose From. Using Dwyer’s Simple, Frictionless Magnehelic® Gage Movement, It Quickly Indicates Air Or Noncorrosive Gas Pressures--Either Positive, Negative (Vacuum) or Differential. The Design Resists Shock, Vibration, Over-Pressures And is Weatherproof to IP67. Select the -HA High Accuracy Magnehelic® Gage Option For An Accuracy Within 1% of Full Scale, Located Below in the Product Configurator. Also Included With The –HA Option At No Extra Cost Are a Mirrored Scale Overlay and a 6 Point Calibration Certificate.
NIST CALIBRATION Available In Product Configurator.
Note: May Be Used With Hydrogen. Order a Buna-N Diaphragm. Pressures Must Be Less Than 35 PSI.
Please See Series AT-2000 for ATEX Approved.
PRODUCT APPLICATIONS
- Filter Monitoring
- Air Velocity with Dwyer Pitot Tube
- Blower Vacuum Monitoring
- Fan Pressure Indication
- Duct,Room or Building Pressures
- Clean Room Positive Pressure Indication
SPECIFICATIONS
- Service:Air And Non-Combustible, Compatible Gases (Natural Gas Option Available). Note: May Be Used With Hydrogen. Order a Buna-N Diaphragm. Pressures Must Be Less Than 35 PSI.
- Wetted Materials:Consult Factory.
- Housing:Die Cast Aluminum Case And Bezel, With Acrylic Cover, Exterior Finish is Coated Gray To Withstand 168 Hour Salt Spray Corrosion Test.
- Accuracy:±2% (-HA model ±1) of FS (±3% (-HA ±1.5%) on -0, -100PA, -125PA, -10MM and ±4% (-HA ±2%) on -00, -60PA, -6MM Ranges), Throughout Range at 70°F (21.1°C).
- Pressure Limits:-20 in Hg. to 15 PSIG.† (-0.677 bar to 1.034 bar); MP Option: 35 PSIG (2.41 Bar), HP Option: 80 PSIG (5.52 Bar).
- Enclosure Rating:IP67.
- Overpressure:Relief Plug Opens At Approximately 25 PSIG (1.72 Bar), Standard Gages Only. See Overpressure Protection Note On Catalog Page.
- Temperature Limits:20 to 140°F (-6.67 to 60°C). -20°F (-28°C) With Low Temperature Option.
- Size:4" (101.6 MM) Diameter Dial Face.
- Mounting Orientation:Diaphragm In Vertical Position. Consult Factory For Other Position Orientations.
- Process Connections:1/8" Female NPT Duplicate High And Low Pressure Taps - One Pair Side And One Pair Back.
- Weight:1 lb 2 oz (510 g); MP & HP 2 lb 2 oz (963 g).
- Standard Accessories:Two 1/8" NPT Plugs For Duplicate Pressure Taps, Two 1/8" Pipe Thread To Rubber Tubing Adapters And Three Flush Mounting Adapterswith Screws. (Mounting And Snap Ring Retainer Substituted For Three Adapters In MP & HP Gage Accessories.)
- Agency Approval:Meets The Technical Requirements Of EU Directive 2011/65/EU (RoHS II).
- Note: -SP Models Not RoHS Approved.Note: For Applications With High Cycle Rate Within Gage Total Pressure Rating, Next Higher Rating Is Recommended. See Options Page.
Additional Information:
- Item Code: Magnehelic-Gauge-In-Pappanamcode-Industrial-Estate
- www.envirotechdelhi.com
- www.envirotechindia.co.in
- www.envirotechdelhi.in
Dwyer Magnehelic Gauge In Lakhimpur Uttar Pradesh
Dwyer Magnehelic Gauge In Lakhimpur Uttar Pradesh

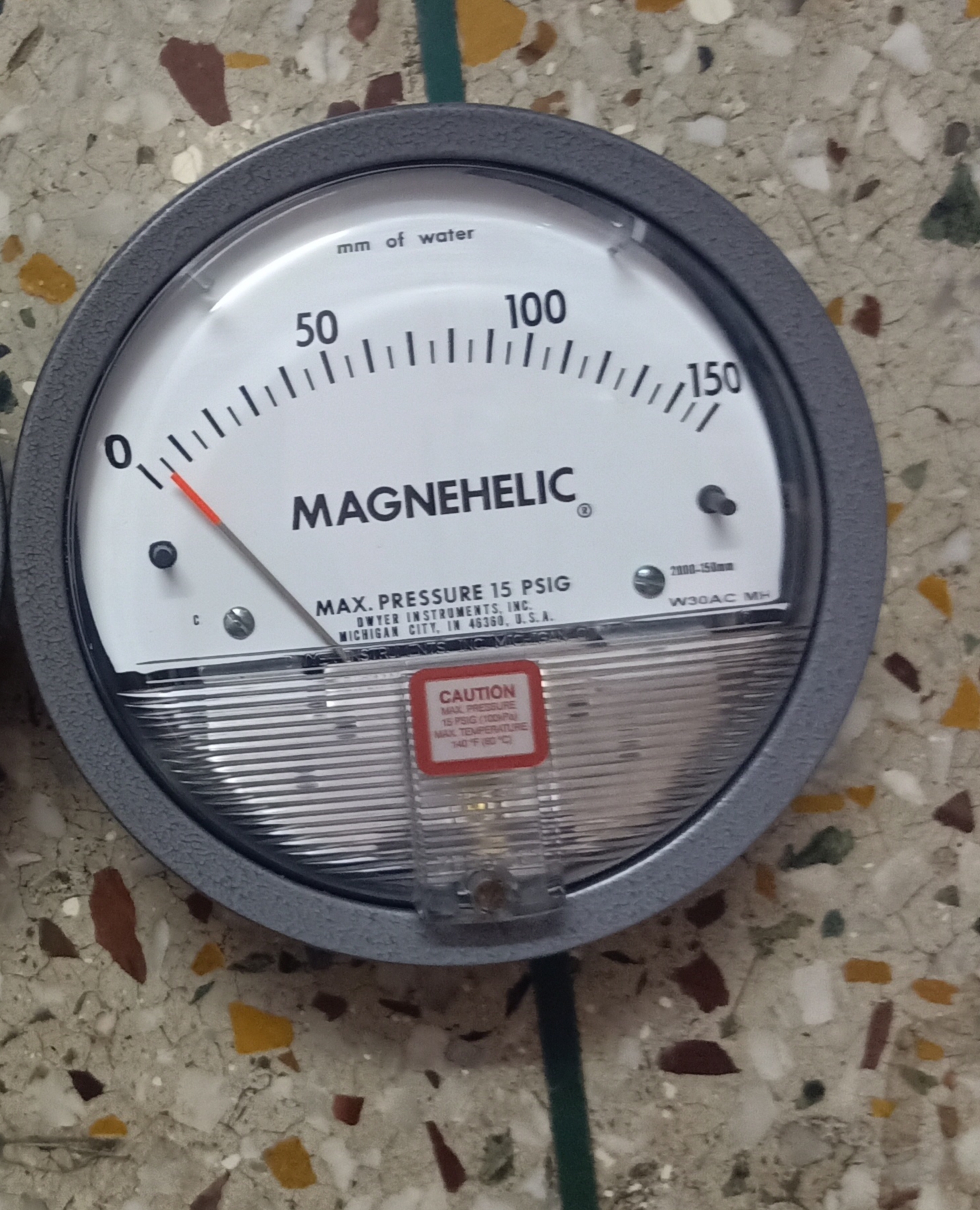

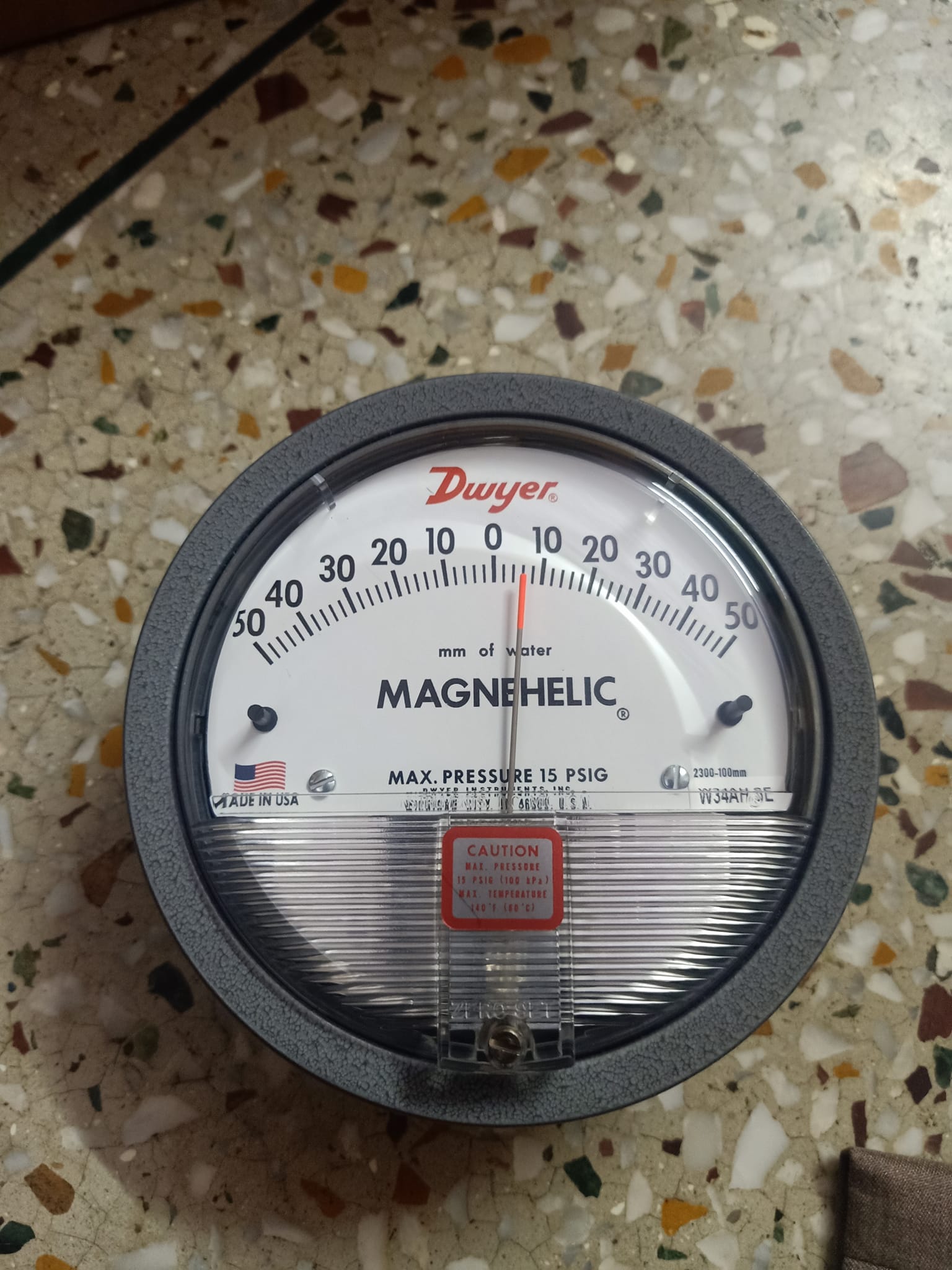

SERIES 2000 MAGNEHELIC® DIFFERENTIAL PRESSURE GAGES
Indicate Positive, Negative or Differential, Accurate within 1%
Select The Series 2000 Magnehelic® Gage For a Versatile Low Differential Pressure Gage With a Wide Choice of 81 Models And 27 Options To Choose From. Using Dwyer’s Simple, Frictionless Magnehelic® Gage Movement, It Quickly Indicates Air Or Noncorrosive Gas Pressures--Either Positive, Negative (Vacuum) or Differential. The Design Resists Shock, Vibration, Over-Pressures And is Weatherproof to IP67. Select the -HA High Accuracy Magnehelic® Gage Option For An Accuracy Within 1% of Full Scale, Located Below in the Product Configurator. Also Included With The –HA Option At No Extra Cost Are a Mirrored Scale Overlay and a 6 Point Calibration Certificate.
NIST CALIBRATION Available In Product Configurator.
Note: May Be Used With Hydrogen. Order a Buna-N Diaphragm. Pressures Must Be Less Than 35 PSI.
Please See Series AT-2000 for ATEX Approved.
PRODUCT APPLICATIONS
SPECIFICATIONS
Indicate Positive, Negative or Differential, Accurate within 1%
- No Power Required
- Low Cost
- Used in Isolation/ Hospital Environments and Temporary Units (No Power Required)
Select The Series 2000 Magnehelic® Gage For a Versatile Low Differential Pressure Gage With a Wide Choice of 81 Models And 27 Options To Choose From. Using Dwyer’s Simple, Frictionless Magnehelic® Gage Movement, It Quickly Indicates Air Or Noncorrosive Gas Pressures--Either Positive, Negative (Vacuum) or Differential. The Design Resists Shock, Vibration, Over-Pressures And is Weatherproof to IP67. Select the -HA High Accuracy Magnehelic® Gage Option For An Accuracy Within 1% of Full Scale, Located Below in the Product Configurator. Also Included With The –HA Option At No Extra Cost Are a Mirrored Scale Overlay and a 6 Point Calibration Certificate.
NIST CALIBRATION Available In Product Configurator.
Note: May Be Used With Hydrogen. Order a Buna-N Diaphragm. Pressures Must Be Less Than 35 PSI.
Please See Series AT-2000 for ATEX Approved.
PRODUCT APPLICATIONS
- Filter Monitoring
- Air Velocity with Dwyer Pitot Tube
- Blower Vacuum Monitoring
- Fan Pressure Indication
- Duct,Room or Building Pressures
- Clean Room Positive Pressure Indication
SPECIFICATIONS
- Service:Air And Non-Combustible, Compatible Gases (Natural Gas Option Available). Note: May Be Used With Hydrogen. Order a Buna-N Diaphragm. Pressures Must Be Less Than 35 PSI.
- Wetted Materials:Consult Factory.
- Housing:Die Cast Aluminum Case And Bezel, With Acrylic Cover, Exterior Finish is Coated Gray To Withstand 168 Hour Salt Spray Corrosion Test.
- Accuracy:±2% (-HA model ±1) of FS (±3% (-HA ±1.5%) on -0, -100PA, -125PA, -10MM and ±4% (-HA ±2%) on -00, -60PA, -6MM Ranges), Throughout Range at 70°F (21.1°C).
- Pressure Limits:-20 in Hg. to 15 PSIG.† (-0.677 bar to 1.034 bar); MP Option: 35 PSIG (2.41 Bar), HP Option: 80 PSIG (5.52 Bar).
- Enclosure Rating:IP67.
- Overpressure:Relief Plug Opens At Approximately 25 PSIG (1.72 Bar), Standard Gages Only. See Overpressure Protection Note On Catalog Page.
- Temperature Limits:20 to 140°F (-6.67 to 60°C). -20°F (-28°C) With Low Temperature Option.
- Size:4" (101.6 MM) Diameter Dial Face.
- Mounting Orientation:Diaphragm In Vertical Position. Consult Factory For Other Position Orientations.
- Process Connections:1/8" Female NPT Duplicate High And Low Pressure Taps - One Pair Side And One Pair Back.
- Weight:1 lb 2 oz (510 g); MP & HP 2 lb 2 oz (963 g).
- Standard Accessories:Two 1/8" NPT Plugs For Duplicate Pressure Taps, Two 1/8" Pipe Thread To Rubber Tubing Adapters And Three Flush Mounting Adapterswith Screws. (Mounting And Snap Ring Retainer Substituted For Three Adapters In MP & HP Gage Accessories.)
- Agency Approval:Meets The Technical Requirements Of EU Directive 2011/65/EU (RoHS II).
- Note: -SP Models Not RoHS Approved.Note: For Applications With High Cycle Rate Within Gage Total Pressure Rating, Next Higher Rating Is Recommended. See Options Page.
Additional Information:
- Item Code: Dwyer Magnehelic Gauge In Lakhimpur Uttar Pradesh
- www.envirotechdelhi.com
- www.envirotechindia.co.in
- www.envirotechdelhi.in
